Name: LT3062IDCB-3.3
Brand: Linear Technology/Analog Devices
SKU: LT3062IDCB-3.3
Availability: InStock

new-10%

LT3062IDCB-3.3

Manufacturer part number:LT3062IDCB-3.3

Manufacturer:Linear Technology/Analog Devices

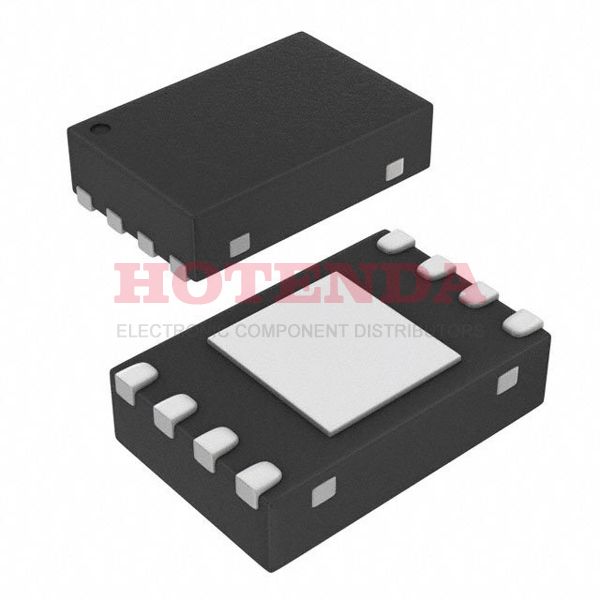

Description:Soft Start Fixed 0.45mm PMIC 8 8-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:LT3062IDCB-3.3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Packing Method	TR
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.45mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	8
JESD-30 Code	R-PDSO-N8
Current - Supply (Max)	10mA
Number of Outputs	1
Voltage - Input (Max)	45V
Output Type	Fixed
Output Configuration	Positive
Current - Output	200mA
Control Features	Soft Start
Output Voltage 1	3.3V
Input Voltage (Min)	3.9V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	90μA
Voltage Dropout (Max)	0.53V @ 200mA
PSRR	73dB (120Hz)
Dropout Voltage1-Nom	0.3V
Output Voltage1-Max	3.366V
Output Voltage1-Min	3.234V
Voltage Tolerance-Max	2%
Input Voltage Absolute-Max	50V
Length	3mm
Height Seated (Max)	0.8mm
Width	2mm
RoHS Status	Non-RoHS Compliant

LT3062IDCB-3.3 Product Details

LT3062IDCB-3.3 Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a 8-WFDFN Exposed Pad package. There are 8 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 200mA. IC voltage regulator has a sum of 8 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. The way of packing the voltage regulator IC is TR.
