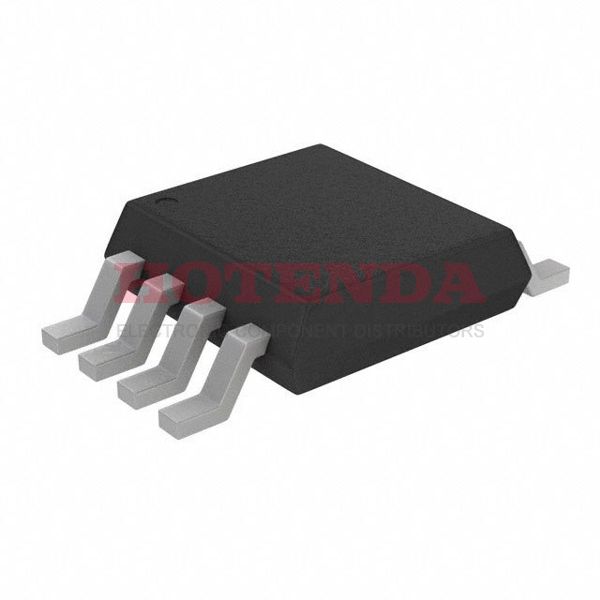

Name: MIC5249-2.5BMM
Brand: Microchip Technology
SKU: MIC5249-2.5BMM
Availability: InStock

new-10%

MIC5249-2.5BMM

Manufacturer part number:MIC5249-2.5BMM

Manufacturer:Microchip Technology

Description:Enable, Reset Fixed 0.65 mm MIC5249 PMIC -- Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MIC5249-2.5BMM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Supplier Device Package	8-MSOP
Number of Terminals	8
Product Status	Discontinued at Digi-Key
Mfr	Microchip Technology
Base Product Number	MIC5249
Package	Tube
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	--
JESD-609 Code	e0
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn85Pb15)
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Terminal Pitch	0.65 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC5249
Pin Count	8
JESD-30 Code	S-PDSO-G8
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	300mA
Control Features	Enable, Reset
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	200μA
Voltage Dropout (Max)	0.6V @ 300mA
PSRR	65dB (120Hz)
Seated Height-Max	1.1 mm
Output Voltage1-Max	2.575 V
Output Voltage1-Min	2.425 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.3 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	7 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	2.5 V
Width	3 mm
Length	3 mm
RoHS Status	Non-RoHS Compliant

MIC5249-2.5BMM Product Details

MIC5249-2.5BMM Overview

The package contains a Tube case. In 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) cases, it is packaged. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 300mA at the moment. 8 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications. I just wanted to let you know that this IC voltage regulator has the part number MIC5249 as its basic part number. In terms of components, this is an example of a Other Regulators component. This device is controlled by a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type regulator. It belongs to the -- Series of regulators.
