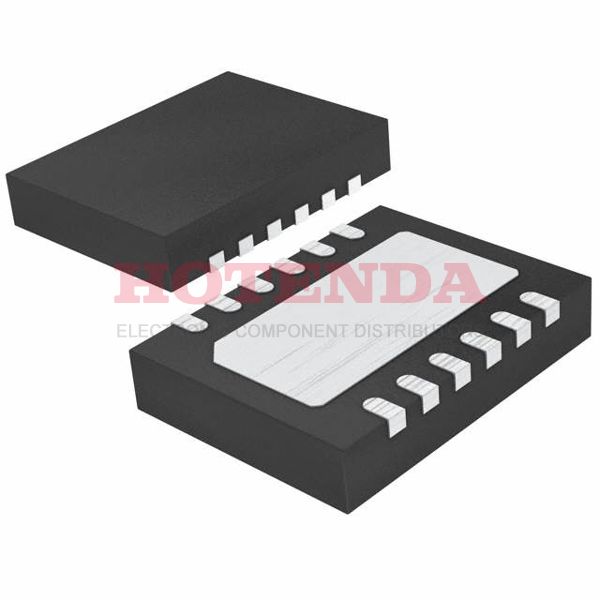

Name: LT3050EDDB
Brand: Linear Technology/Analog Devices
SKU: LT3050EDDB
Availability: InStock

new-10%

LT3050EDDB

Manufacturer part number:LT3050EDDB

Manufacturer:Linear Technology/Analog Devices

Description:Current Limit, Enable, Soft Start Adjustable 0.45mm PMIC 12 12-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:LT3050EDDB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2012
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	12
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	235
Number of Functions	1
Terminal Pitch	0.45mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	20
Pin Count	12
Current - Supply (Max)	5.2mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	45V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	100mA
Control Features	Current Limit, Enable, Soft Start
Voltage - Output (Min/Fixed)	0.6V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	90μA
Voltage Dropout (Max)	0.55V @ 100mA
PSRR	85dB (120Hz)
Dropout Voltage1-Nom	0.34V
Output Voltage1-Min	0.6V
Voltage - Output (Max)	44.5V
Load Regulation-Max(%)	0.67%
Input-Output Voltage Differential-Max	45V
Input-Output Voltage Differential-Min	2.2V
Length	3mm
Height Seated (Max)	0.8mm
Width	2mm
RoHS Status	Non-RoHS Compliant

LT3050EDDB Product Details

LT3050EDDB Overview

The package contains a Tube case. In 12-WFDFN Exposed Pad cases, it is packaged. This gadget has 12 terminations on it, each with a different function. Adjustable is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~125°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 100mA at the moment. 12 pins make up the sum of this IC voltage regulator. As a result of this IC voltage regulator's 1 outputs, it ensures prompt, adequate performance for all your applications.
