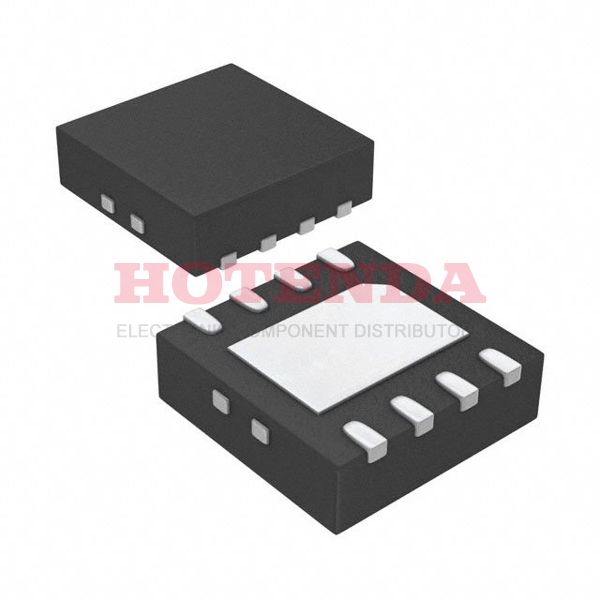

Name: LT1964IDD
Brand: Linear Technology/Analog Devices
SKU: LT1964IDD
Availability: InStock

new-10%

LT1964IDD

Manufacturer part number:LT1964IDD

Manufacturer:Linear Technology/Analog Devices

Description:Enable Adjustable 0.5mm PMIC 8 8-WFDFN Exposed Pad

Case Package:SOT-23

Datasheet:LT1964IDD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C
Published	2008
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	255
Number of Functions	1
Terminal Pitch	0.5mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	40
Pin Count	8
JESD-30 Code	S-PDSO-N8
Current - Supply (Max)	6mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	-20V
Output Type	Adjustable
Output Configuration	Negative
Current - Output	200mA
Control Features	Enable
Voltage - Output (Min/Fixed)	-1.22V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	70μA
Voltage Dropout (Max)	0.49V @ 200mA
PSRR	54dB (120Hz)
Dropout Voltage1-Nom	0.34V
Output Voltage1-Max	20V
Input-Output Voltage Differential-Max	20V
Input-Output Voltage Differential-Min	2.8V
Length	3mm
Height Seated (Max)	0.8mm
Width	3mm
RoHS Status	Non-RoHS Compliant

LT1964IDD Product Details

LT1964IDD Overview

This voltage regulator IC comes in a 8-WFDFN Exposed Pad case. On the regulater IC chip, there are a total of 8 terminations. Output type Adjustable. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Negative. In terms of its current output, it is able to supply 200mA. A total of 8 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total.
