MC79L05ACLPRE3 Overview

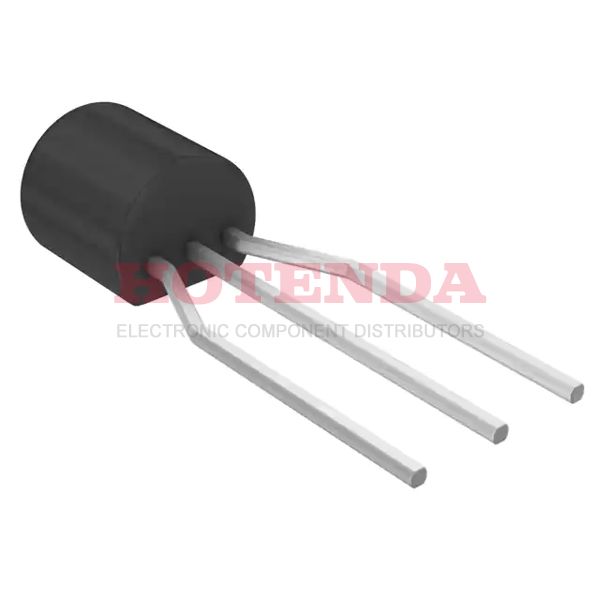

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) case is used. On the Voltage regulator IC, there are 3 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Through Hole can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at 0°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Negative. As you can see, the regulator IC has a total of 3 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 3 pins may be available. For your information, part number 79L05 is the basic part number for this voltage regulator IC. There is a TAPE AND REEL way of packing the IC voltage regulators in the box. There is a maximum output current of 100mA for this regulator to meet the operational requirements. It operates in the 6mA Quiescent Current state.
MC79L05ACLPRE3 Features
1.7V dropout voltage
TAPE AND REEL method of packing
MC79L05ACLPRE3 Applications
There are a lot of Texas Instruments
MC79L05ACLPRE3 Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
