LT1469AIDF Overview

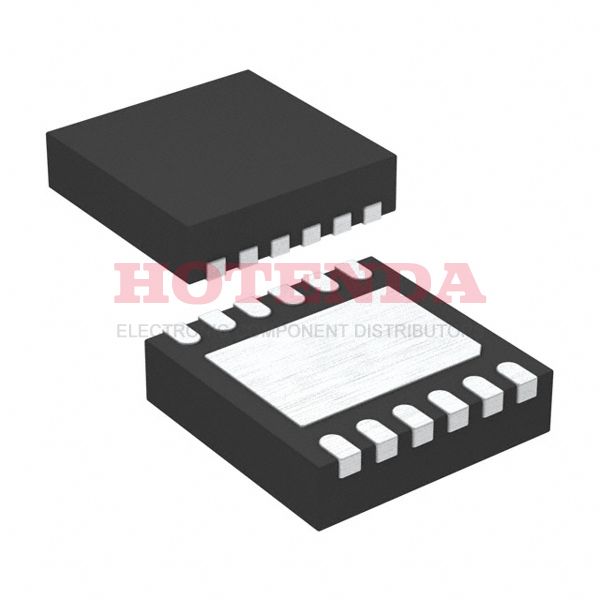

It is packaged in an 12-WFDFN Exposed Pad-case that protects the operational amplifiers from damage. The instrumentation amplifier in this picture is of the General Purpose-type. The case in which buffer amplifier is delivered is called a Tube case. It is estimated that there will be at least 12 terminations this year. A total of 12 pins are attached to buffer op amp. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 5V. A type of Operational Amplifier buffer op amp is what this device is specifically, to be more precise. This electronic component is recommended to be mounted using the mounting type Surface Mount. In terms of operating temperature, this instrumentation amplifier is well suited to a temperature range of -40°C~85°C. On this buffer amplifier, there are 2 circuits. As a recommendation, this electronic component should be used with a power supply that can deliver 4.1mA. This op amp ic can conduct a minimum voltage gain of 75000.
LT1469AIDF Features
12 Pins
supply voltage of 5V
LT1469AIDF Applications
There are a lot of Linear Technology/Analog Devices LT1469AIDF Instrumentational OP Amps applications.
- Cinema or auditorium audio system
- Non-polarized electrodes
- Power control
- Strain gauges
- Commercial audio systems
- Large motor controllers
- Integrator circuits
- Weighing systems
- E-book readers
- Band-pass filter
