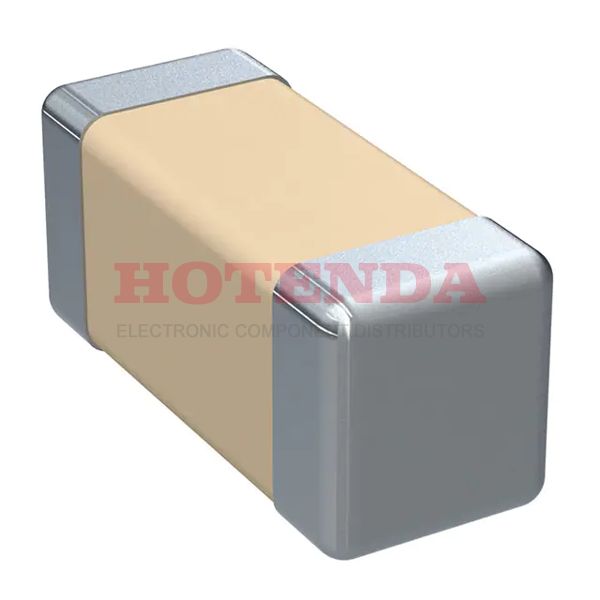

Name: C0603C153J5RAC7867
Brand: KEMET Corporation
SKU: C0603C153J5RAC7867
Price: 0.41000 USD
Availability: InStock

new-10%

C0603C153J5RAC7867

Manufacturer part number:C0603C153J5RAC7867

Manufacturer:KEMET Corporation

Description:SMD Comm X7R 15000PF(pF) 50V Ceramic Capacitor 5% X7R 0.063 L x 0.031 W (1.60mm x 0.80mm) -55°C ~ 125°C Surface Mount, MLCC 0603

Case Package:SOT-23

Datasheet:C0603C153J5RAC7867 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	0603
Mounting Type	Surface Mount, MLCC
Dielectric Material	CERAMIC
Number of Terminals	2
Mounting Style	Surface Mount
ECCN (US)	EAR99
Capacitance Value	0.015uF
Microwave Application	No
Mounting	Surface Mount
Case Style	Ceramic Chip
Dissipation Factor (%)	2.5
Size (mm)	1.6 X 0.8 X 0.8
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Product Depth (mm)	0.8
Wire Form	Not Required
Operating Temp Range	-55C to 125C
Product Diameter (mm)	Not Required(mm)
Temp Coeff (Dielectric)	X7R
Lead Diameter (nom)	Not Required(mm)
Tolerance (+ or -)	5%
Rad Hardened	No
Seated Plane Height	Not Required(mm)
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	C0603C
Mfr	KEMET
Product Status	Active
Height - Seated (Max)	-
Manufacturer	KEMET Corporation
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Class	Class 2
Packaging	Tape and Reel
Operating Temperature	-55°C ~ 125°C
Series	SMD Comm X7R
Size / Dimension	0.063 L x 0.031 W (1.60mm x 0.80mm)
Tolerance	5%
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Active
Termination	Standard
ECCN Code	EAR99
Temperature Coefficient	X7R
Type	X7R Dielectric Commercial Grade MLCCs
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	Bypass, Decoupling
Voltage - Rated	50V
HTS Code	8532.24.00.20
Capacitance	15000PF(pF)
Subcategory	Capacitors
Packing Method	TR, Paper, 7 Inch
Construction	Flat
Reach Compliance Code	compliant
Termination Style	Pad
Capacitor Type	CERAMIC CAPACITOR
Dielectric	X7R
Failure Rate	Not Required
Lead Spacing	-
Temperature Characteristics Code	X7R
Multilayer	Yes
Rated (DC) Voltage (URdc)	50 V
Size Code	0603
Voltage	50VDC
Lead Style	-
Positive Tolerance	5%
Negative Tolerance	5%
Product Type	Ceramic Capacitors
Product	General Type MLCCs
Features	-
Product Length (mm)	1.6
Width	0.8 mm
Height	0.8 mm
Length	1.6 mm
Thickness (Max)	0.034 (0.87mm)
Product Height (mm)	0.8
RoHS Status	RoHS Compliant
Ratings	-

C0603C153J5RAC7867 Product Details

C0603C153J5RAC7867 Overview

For this device, the size/dimension of the program is 0.063 L x 0.031 W (1.60mm x 0.80mm).There is no negative tolerance associated with this part.Assuming no potential difference (e.g., voltage) between the conductors, 0.015uF is the capacitance value of this device.Positive tolerance exhibits 5% on this part.As a general rule, temperature coefficient of resistance is simply the change in electrical resistance of a substance per degree change in temperature, and its value is X7R.

C0603C153J5RAC7867 Features

a size/dimension of 0.063 L x 0.031 W (1.60mm x 0.80mm)
a tolerance of 5%
a capacitance value of 0.015uF
a tolerance of 5%
with X7R being the highest temperature coefficient
