C322C474K1R5TA

  • C322C474K1R5TA
  • C322C474K1R5TA

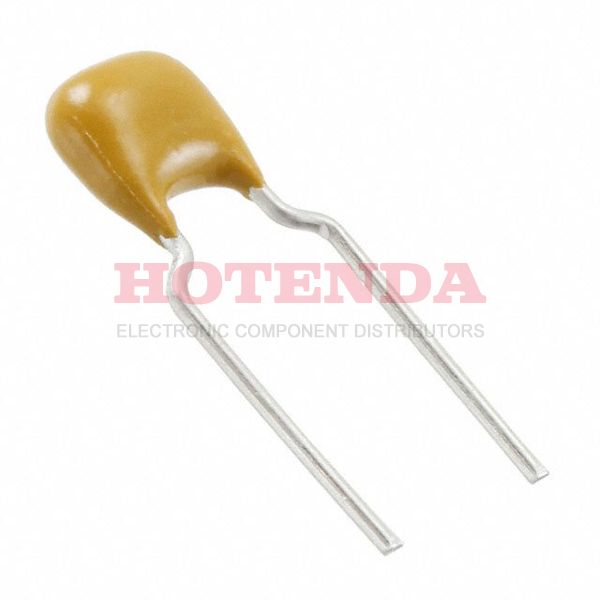

C322C474K1R5TA

C322C474K1R5TA

KEMET

C322C474K1R5TA datasheet pdf and Ceramic Capacitors product details from KEMET stock available on our website

SOT-23

C322C474K1R5TA Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 8 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 322
Dielectric Material Ceramic
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series GoldMax 300 Comm X7R
Size / Dimension 0.200Lx0.125W 5.08mmx3.18mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient X7R
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Applications General Purpose
HTS Code 8532.24.00.60
Capacitance 0.47μF
Voltage - Rated DC 100V
Depth 3.18mm
Lead Pitch 5.08mm
Lead Spacing 0.200 5.08mm
Temperature Characteristics Code X7R
Multilayer Yes
Lead Diameter 510 μm
Size Code 2012
Voltage 100V
Lead Style Formed Leads
Dissipation Factor 2.5 %
Lead/Base Style Formed Leads
Height 3.18mm
Height Seated (Max) 0.260 6.60mm
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Pricing & Ordering
Quantity Unit Price Ext. Price
1 $0.88000 $0.88
10 $0.66600 $6.66
100 $0.47660 $47.66
500 $0.36900 $184.5
C322C474K1R5TA Product Details

C322C474K1R5TA Overview


Programs on this device are of 0.200Lx0.125W 5.08mmx3.18mm size/dimension.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with X7R being the highest temperature coefficient.The voltage - Rated DC of 100V allows it to function.There is no lead pitch on capacitors, and it is simply the distance (spacing) between adjacent threads.

C322C474K1R5TA Features


a size/dimension of 0.200Lx0.125W 5.08mmx3.18mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 100V

C322C474K1R5TA Applications


There are a lot of KEMET C322C474K1R5TA applications of ceramic capacitors.

  • Servers, PCs, tablets
  • Mobile devices
  • General electronic equipment
  • Power supply circuit
