R82DC3150AA60J

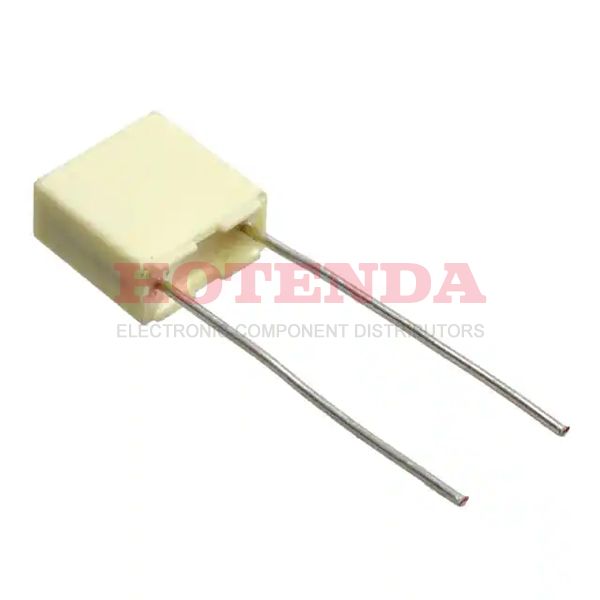

  • R82DC3150AA60J - R82 0.15μF Film Capacitor ±5% Radial PC Pins 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked PCB, Through Hole
  • R82DC3150AA60J - R82 0.15μF Film Capacitor ±5% Radial PC Pins 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked PCB, Through Hole

R82DC3150AA60J

R82DC3150AA60J

KEMET

R82 0.15μF Film Capacitor ±5% Radial PC Pins 63V-DC 40V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked PCB, Through Hole

SOT-23

R82DC3150AA60J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 29 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~105°C
PackagingBulk
Published 2008
Series R82
Size / Dimension 0.283Lx0.098W 7.20mmx2.50mm
Tolerance ±5%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Type General Purpose
Terminal Finish Tin (Sn)
Applications Automotive
HTS Code8532.25.00.80
Capacitance 0.15μF
Voltage - Rated DC 63V
Depth 2.5mm
Voltage - Rated AC 40V
Lead Pitch 5mm
Dielectric PET
Lead Spacing0.197 5.00mm
Insulation Resistance30Ohm
Lead Diameter 500 μm
Size Code 2810
Voltage 63V
Dissipation Factor2.5 %
Height 6.5mm
Height Seated (Max) 0.260 6.60mm
Length 7.2mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:28224 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.274864$0.274864
10$0.259306$2.59306
100$0.244628$24.4628
500$0.230781$115.3905
1000$0.217718$217.718

R82DC3150AA60J Product Details

R82DC3150AA60J Overview


From the device, there is an insulation resistance of 30Ohm.There is 0.197 5.00mm lead spacing on this electrical device.-55°C~105°C is the maximum temperature at which the device can operate.

R82DC3150AA60J Features


30Ohm insulation resistance


R82DC3150AA60J Applications


There are a lot of KEMET
R82DC3150AA60J applications of film capacitors.


  • Coupling, decoupling
  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
