R46KF210040H1M

  • R46KF210040H1M - R46 10000pF Film Capacitor ±20% Radial PC Pins 560V-DC 275V-AC Polypropylene (PP), Metallized Through Hole
  • R46KF210040H1M - R46 10000pF Film Capacitor ±20% Radial PC Pins 560V-DC 275V-AC Polypropylene (PP), Metallized Through Hole

R46KF210040H1M

R46KF210040H1M

KEMET

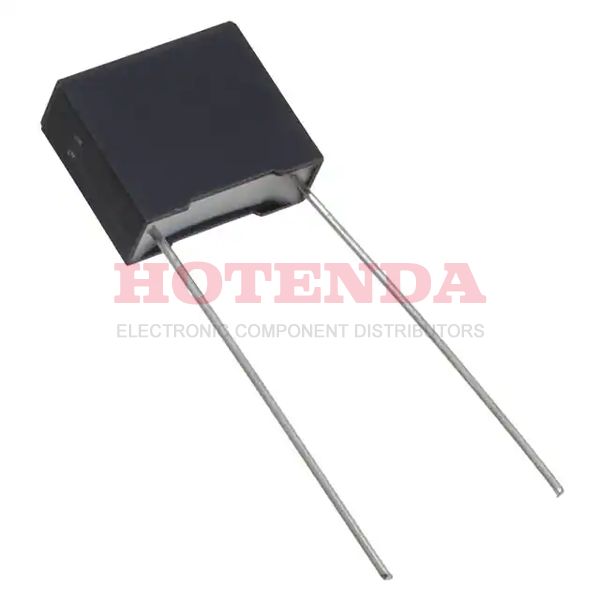

R46 10000pF Film Capacitor ±20% Radial PC Pins 560V-DC 275V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

R46KF210040H1M Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 30 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~125°C
PackagingBulk
Published 2015
Series R46
Size / Dimension 0.512Lx0.197W 13.00mmx5.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications EMI, RFI Suppression
HTS Code8532.25.00.70
Capacitance 10000pF
Voltage - Rated DC 560V
Terminal Pitch10mm
Reference Standard IEC60384-14
Voltage - Rated AC 275V
Lead Pitch 10.0076mm
Capacitor Type FILM CAPACITOR
Lead Spacing0.394 10.00mm
Size Code 5120
Height Seated (Max) 0.437 11.10mm
Length 13mm
Width 5mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings X2
In-Stock:12444 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.533208$0.533208
10$0.503027$5.03027
100$0.474553$47.4553
500$0.447692$223.846
1000$0.422351$422.351

R46KF210040H1M Product Details

R46KF210040H1M Overview


A 0.394 10.00mm lead spacing is used in this electrical device.Temperatures of -40°C~125°C are suitable for operating the device.

R46KF210040H1M Features



R46KF210040H1M Applications


There are a lot of KEMET R46KF210040H1M applications of film capacitors.

  • Test and measuring equipment
  • Compact fluorescent lamps (CFL)
  • Bypassing
  • Audio/video equipment
  • Snubbering
  • Switch-mode power supplies
  • IGBT
  • Electronic ballasts
  • Switch mode power supplies
  • VCO's
