R82EC4100Z370K

  • R82EC4100Z370K - R82EC4100Z370K datasheet pdf and Film Capacitors product details from KEMET stock available on our website
  • R82EC4100Z370K - R82EC4100Z370K datasheet pdf and Film Capacitors product details from KEMET stock available on our website

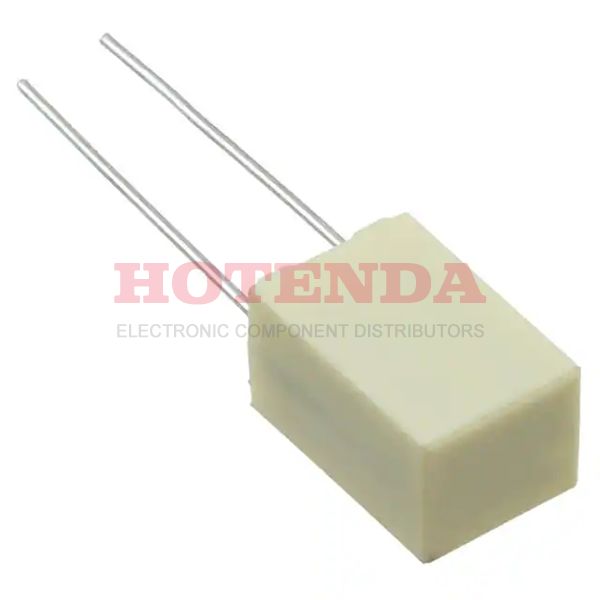

R82EC4100Z370K

R82EC4100Z370K

KEMET

R82EC4100Z370K datasheet pdf and Film Capacitors product details from KEMET stock available on our website

SOT-23

R82EC4100Z370K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 29 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~105°C
PackagingBulk
Published 2015
Series R82
Size / Dimension 0.283Lx0.236W 7.20mmx6.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
Terminal Finish Tin (Sn)
Applications Automotive
Additional FeatureRATED AC VOLTAGE (V): 63
Capacitance 1μF
Voltage - Rated DC 100V
Depth 6mm
Voltage - Rated AC 63V
Lead Pitch 5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Size Code 2824
Height 11mm
Height Seated (Max) 0.437 11.10mm
Length 7.2mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:9181 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.67000$0.67
10$0.49400$4.94
100$0.33840$33.84
500$0.26790$133.95

R82EC4100Z370K Product Details

R82EC4100Z370K Overview


Electrical devices have 0.197 5.00mm lead spacing.In a temperature range of -55°C~105°C, the device can be operated.

R82EC4100Z370K Features



R82EC4100Z370K Applications


There are a lot of KEMET R82EC4100Z370K applications of film capacitors.

  • Test and measuring equipment
  • IGBT
  • VCO's
  • Switch-mode power supplies
  • Filters
  • Filtering
  • RF Modules
  • Mobile communications
  • Compact fluorescent lamps (CFL)
  • TV and monitor sets
