PHE450MD6220JR06L2

  • PHE450MD6220JR06L2 - PHE450 0.22μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized PCB, Through Hole
  • PHE450MD6220JR06L2 - PHE450 0.22μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized PCB, Through Hole

PHE450MD6220JR06L2

PHE450MD6220JR06L2

KEMET

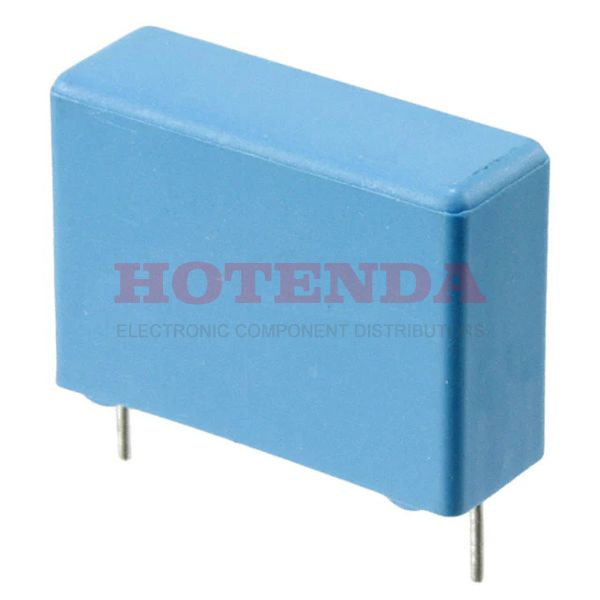

PHE450 0.22μF Film Capacitor ±5% Radial PC Pins 630V-DC 400V-AC Polypropylene (PP), Metallized PCB, Through Hole

SOT-23

PHE450MD6220JR06L2 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 28 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2012
Series PHE450
Size / Dimension 1.024Lx0.354W 26.00mmx9.00mm
Tolerance ±5%
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Applications High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 400
HTS Code8532.25.00.70
Capacitance 0.22μF
Voltage - Rated DC 630V
Depth 9mm
Voltage - Rated AC 400V
Lead Pitch 22.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.886 22.50mm
Lead Diameter 800 μm
Voltage 630V
Height 9mm
Height Seated (Max) 0.728 18.50mm
Length 26mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:2284 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.881883$2.881883
10$2.718757$27.18757
100$2.564866$256.4866
500$2.419684$1209.842
1000$2.282721$2282.721

PHE450MD6220JR06L2 Product Details

PHE450MD6220JR06L2 Overview


Its lead spacing is 0.886 22.50mm.In a temperature range of -55°C~105°C, the device can be operated.

PHE450MD6220JR06L2 Features



PHE450MD6220JR06L2 Applications


There are a lot of KEMET PHE450MD6220JR06L2 applications of film capacitors.

  • IGBT
  • Switch-mode power supplies
  • Satellite TV
  • Switch mode power supplies
  • Mobile communications
  • Electronic ballasts
  • Industrial and automotive inverters
  • Lighting
  • RFI for automotive
  • Global positioning systems
