ECW-FG2J155Q1

  • ECW-FG2J155Q1 - ECWFG 1.5μF Film Capacitor ±10% Radial PC Pins 630V-DC Polypropylene (PP), Metallized
  • ECW-FG2J155Q1 - ECWFG 1.5μF Film Capacitor ±10% Radial PC Pins 630V-DC Polypropylene (PP), Metallized

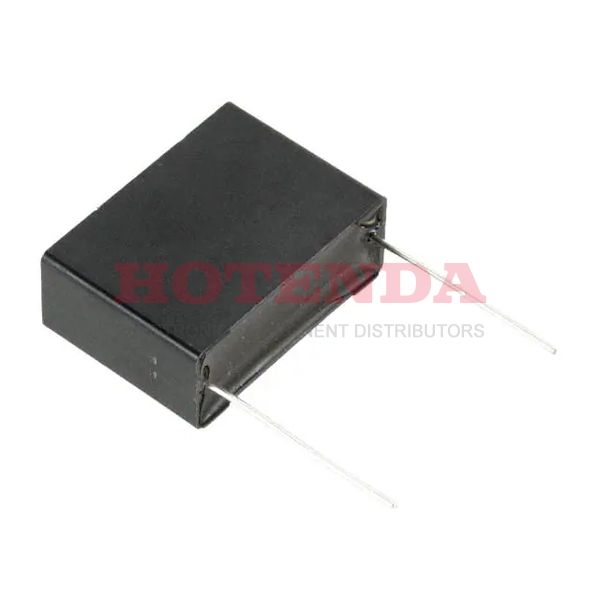

ECW-FG2J155Q1

ECW-FG2J155Q1

Panasonic Electronic Components

ECWFG 1.5μF Film Capacitor ±10% Radial PC Pins 630V-DC Polypropylene (PP), Metallized

SOT-23

ECW-FG2J155Q1 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 13 Weeks
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Series ECWFG
Size / Dimension 1.063Lx0.472W 27.00mmx12.00mm
Tolerance ±10%
Feature High Temperature
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Applications Automotive; High Frequency, Switching
Capacitance 1.5μF
Voltage - Rated DC 630V
Lead Spacing0.886 22.50mm
Height Seated (Max) 0.846 21.50mm
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:5223 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.334516$1.334516
10$1.258978$12.58978
100$1.187714$118.7714
500$1.120485$560.2425
1000$1.057061$1057.061

ECW-FG2J155Q1 Product Details

ECW-FG2J155Q1 Overview


Electrical devices have 0.886 22.50mm lead spacing.Devices with a -40°C~110°C temperature capability can be operated.

ECW-FG2J155Q1 Features



ECW-FG2J155Q1 Applications


There are a lot of Panasonic Electronic Components ECW-FG2J155Q1 applications of film capacitors.

  • TV and monitor sets
  • Snubbering
  • Bypassing
  • IGBT
  • Filters
  • VCO's
  • Blocking
  • Electronic ballasts
  • Satellite TV
  • Global positioning systems
