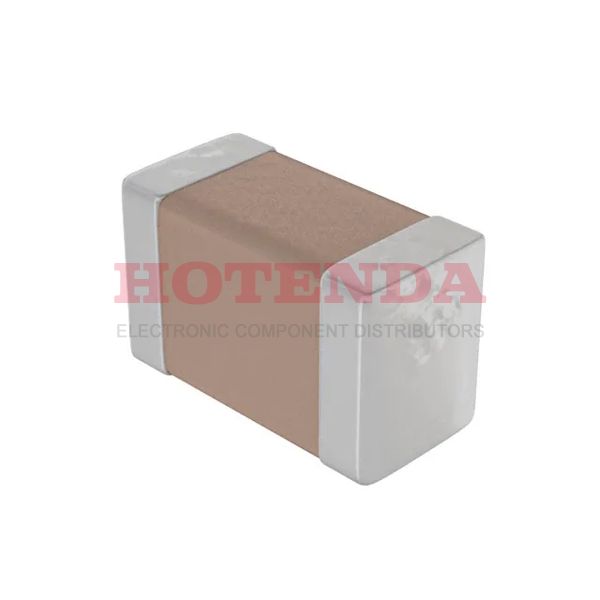

Name: 500R07N680JV4T
Brand: Johanson Dielectrics Inc.
SKU: 500R07N680JV4T
Price: 0.01000 USD
Availability: InStock

new-10%

500R07N680JV4T

Manufacturer part number:500R07N680JV4T

Manufacturer:Johanson Dielectrics Inc.

Description:500R07N680JV4T datasheet pdf and Ceramic Capacitors product details from Johanson Dielectrics Inc. stock available on our website

Case Package:SOT-23

Datasheet:500R07N680JV4T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2004
Size / Dimension	0.040Lx0.020W 1.02mmx0.51mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
HTS Code	8532.24.00.20
Capacitance	68pF
Voltage - Rated DC	50V
Packing Method	TR, PUNCHED, 7 INCH
Depth	510μm
Case Code (Metric)	1005
Case Code (Imperial)	0402
Capacitor Type	CERAMIC CAPACITOR
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Height	0.64mm
Length	1.02mm
Width	0.51mm
Thickness (Max)	0.025 0.64mm
Thickness	635μm
RoHS Status	ROHS3 Compliant

500R07N680JV4T Product Details

500R07N680JV4T Overview

The size/dimension of the program on this device is 0.040Lx0.020W 1.02mmx0.51mm.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with C0G NP0 being the highest temperature coefficient.Powered by voltage of 50V, it can be operated with a voltage of rated DC.
