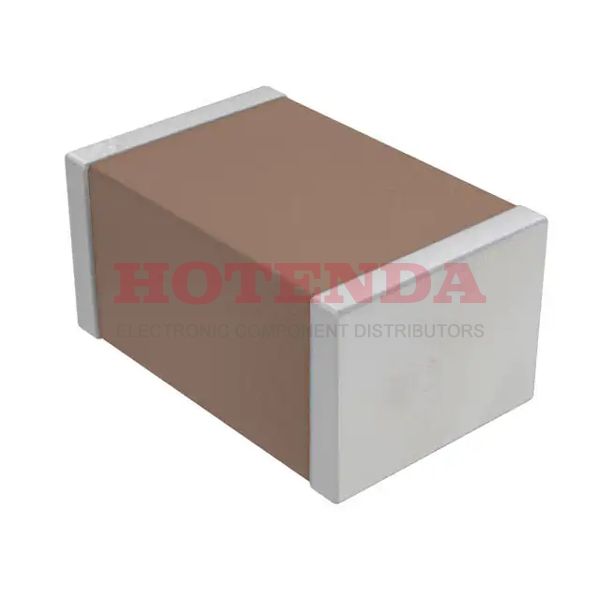

Name: CGA4C4NP02W121J060AA
Brand: TDK Corporation
SKU: CGA4C4NP02W121J060AA
Price: 0.51000 USD
Availability: InStock

new-10%

CGA4C4NP02W121J060AA

Manufacturer part number:CGA4C4NP02W121J060AA

Manufacturer:TDK Corporation

Description:CGA4C4NP02W121J060AA datasheet pdf and Ceramic Capacitors product details from TDK Corporation stock available on our website

Case Package:SOT-23

Datasheet:CGA4C4NP02W121J060AA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	PRODUCTION (NOT RECOMMENDED FOR NEW DESIGN) (Last Updated: 1 month ago)
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0805 (2012 Metric)
Dielectric Material	CERAMIC
Operating Temperature	-55°C~150°C
Packaging	Tape & Reel (TR)
Published	2014
Series	CGA
Size / Dimension	0.079Lx0.049W 2.00mmx1.25mm
Tolerance	±5%
JESD-609 Code	e3
Feature	High Temperature
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	Automotive
Voltage - Rated	450V
Capacitance	120pF
Case Code (Metric)	2012
Case Code (Imperial)	0805
Capacitor Type	CERAMIC CAPACITOR
Thickness (Max)	0.030 0.75mm
Thickness	762μm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	AEC-Q200

CGA4C4NP02W121J060AA Product Details

CGA4C4NP02W121J060AA Overview

This device's program size/dimension is 0.079Lx0.049W 2.00mmx1.25mm.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with C0G NP0 being the highest temperature coefficient.
