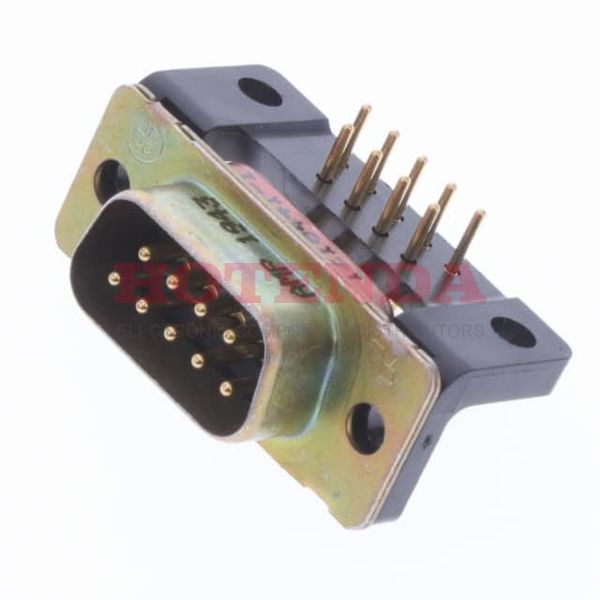

Name: 1218441-1
Brand: TE Connectivity Aerospace, Defense and Marine
SKU: 1218441-1
Price: 33.46000 USD
Availability: InStock

new

1218441-1

Manufacturer part number:1218441-1

Manufacturer:TE Connectivity Aerospace, Defense and Marine

Description:1218441-1 datasheet pdf and D-Sub Connectors product details from TE Connectivity Aerospace, Defense and Marine stock available on our website

Case Package:SOT-23

Datasheet:1218441-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Contact Material	Brass
Contact Plating	Gold, Nickel
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Housing Material	Steel
Body Material	Metal
Shell Material, Finish	Steel, Cadmium Plated
PCB Mounting Orientation	Right Angle
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2007
Series	Military, MIL-DTL-24308, AMPLIMITE 109
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	9
Termination	Solder
Connector Type	Plug, Male Pins
Color	Black
Number of Rows	2
Gender	Male
Subcategory	D Type Connectors
MIL Conformance	YES
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	9
Orientation	Right Angle
Current Rating	5A
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Lead Length	3.9624mm
Empty Shell	NO
Body Depth	0.534 inch
Flange Feature	Housing/Shell (Unthreaded)
ELV	Non-Compliant
Plating	Cadmium
Connector Style	D-Sub
Number of Ports	1
Sealable	No
Shell Size, Connector Layout	1 DE E
Hole Diameter	3.048 mm
Backset Spacing	0.318 (8.08mm)
Length	31.19mm
Width	10.7mm
Contact Finish Thickness	10.0μin 0.25μm
REACH SVHC	Unknown
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

1218441-1 Product Details

1218441-1 Overview

The connector type Plug, Male Pins refers to the connector type.The mounting type of the device is Through Hole, Right Angle.Packaged in a Bulk case.The product is a member of the Military, MIL-DTL-24308, AMPLIMITE 109 Series.The device has 1 ports for managing a variety of tasks.By Through Hole, the part is mounted.Chips with terminations of 9 are available.This device operates at a temperature of -55°C~125°C.
