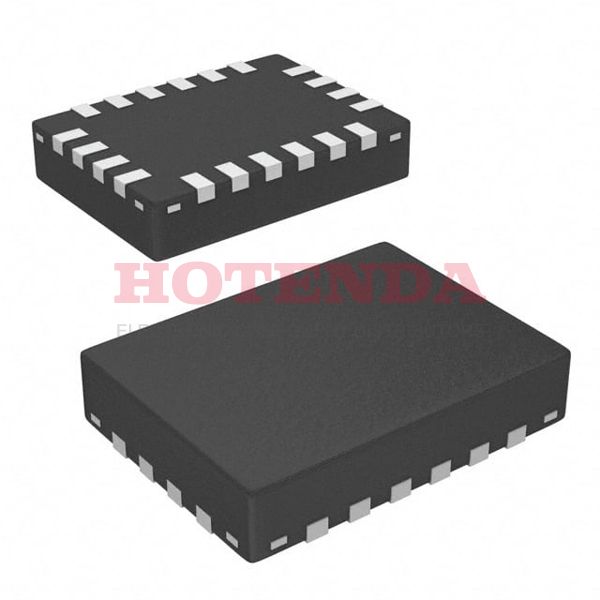

ISL9219IRZ Overview
A QFN package would be appropriate for this. IC POWER SUPPLY SUPPORT CIRCUIT is the system battery's analog IC. The available channels are 1. Surface Mount is the mount number for this electronic part. It must be greater than -40°C to activate this system battery. Temperatures below 85°C are recommended. There is a 5V volt power source. It is recommended that this battery protection IC be set to 5V at all times. Total number of pins is 20. A voltage of 6V is reached when the maximum supply voltage (Vsup) is reached. A voltage greater than 4.3V (Vsup) must be required for a power supply. Unless specified otherwise, Isup (the maximum supply current) must not exceed 2mA. It is specified that the operating supply voltage for this battery instrument is 6V. In this case, it produces 4.2V voltage as an output.
ISL9219IRZ Features
Available in QFN Package
operate supply voltage at the range of 5V
Supply Voltage-Max (Vsup) : 6V
ISL9219IRZ Applications
There are a lot of Intersil (Renesas Electronics America)
ISL9219IRZ Battery Management ICs applications.
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
- Solar and wind-generating plants
