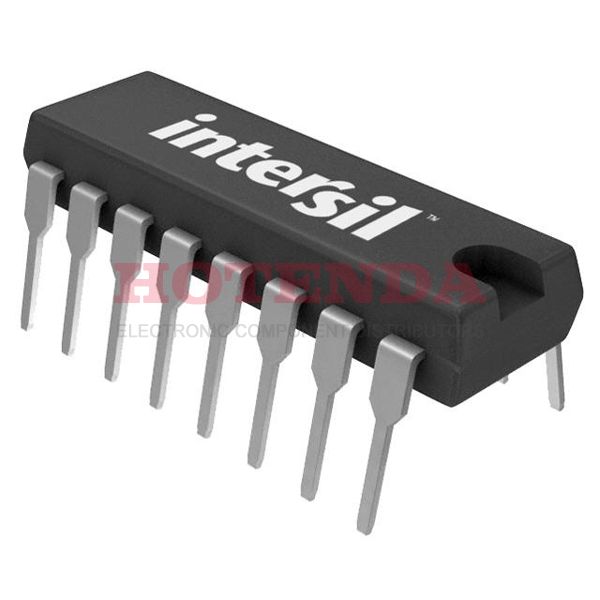

CA3280E Overview
The linear amplifier is packaged in a DIP case. This is a OPERATIONAL AMPLIFIER type op amp. The number of terminations approaches 16. Buffer amplifier has a total of 16 pins. Please take in mind that this instrumentation amplifier should be run at 15V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. Regarding input offset voltage, op amp rates 700μV. This op amp can operate from a supply current at 2mA. There are 2 circuits on this op amp. The temperature should not be lower than 0°C for operational amplifier ics to operate. Use op amps only at temperatures no higher than 70°C.
CA3280E Features
16 Pins
supply voltage of 15V
CA3280E Applications
There are a lot of Intersil (Renesas Electronics America)
CA3280E Instrumentational OP Amps applications.
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
