Name: SPI15N60C3HKSA1
Brand: Infineon Technologies
SKU: SPI15N60C3HKSA1
Availability: InStock

new-10%

SPI15N60C3HKSA1

Manufacturer part number:SPI15N60C3HKSA1

Manufacturer:Infineon Technologies

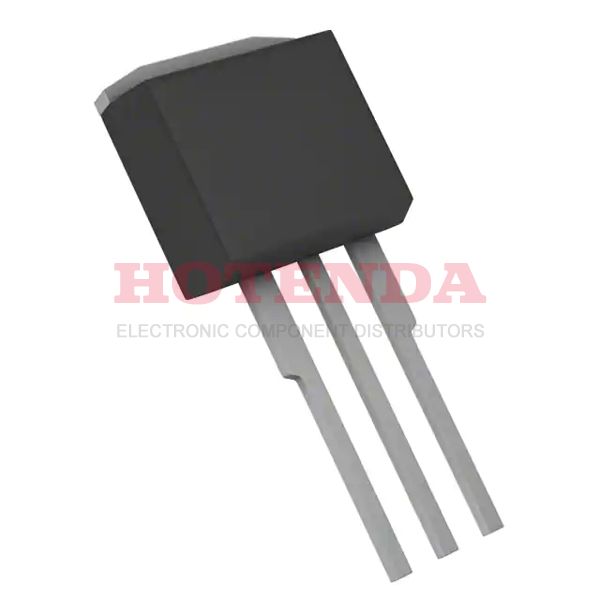

Description:Trans MOSFET N-CH 600V 15A 3-Pin(3+Tab) TO-262

Case Package:SOT-23

Datasheet:SPI15N60C3HKSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I2Pak, TO-262AA
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2005
Series	CoolMOS™
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Additional Feature	AVALANCHE RATED
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	156W Tc
Operating Mode	ENHANCEMENT MODE
Turn On Delay Time	10 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	280m Ω @ 9.4A, 10V
Vgs(th) (Max) @ Id	3.9V @ 675μA
Input Capacitance (Ciss) (Max) @ Vds	1660pF @ 25V
Current - Continuous Drain (Id) @ 25°C	15A Tc
Gate Charge (Qg) (Max) @ Vgs	63nC @ 10V
Rise Time	5ns
Drain to Source Voltage (Vdss)	650V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Turn-Off Delay Time	50 ns
Continuous Drain Current (ID)	15A
Gate to Source Voltage (Vgs)	20V
Drain-source On Resistance-Max	0.28Ohm
Pulsed Drain Current-Max (IDM)	45A
DS Breakdown Voltage-Min	600V
Avalanche Energy Rating (Eas)	460 mJ
RoHS Status	RoHS Compliant

About SPI15N60C3HKSA1

The SPI15N60C3HKSA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features Trans MOSFET N-CH 600V 15A 3-Pin(3+Tab) TO-262.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SPI15N60C3HKSA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
