Name: IRL3714LPBF
Brand: Infineon Technologies
SKU: IRL3714LPBF
Availability: InStock

new-10%

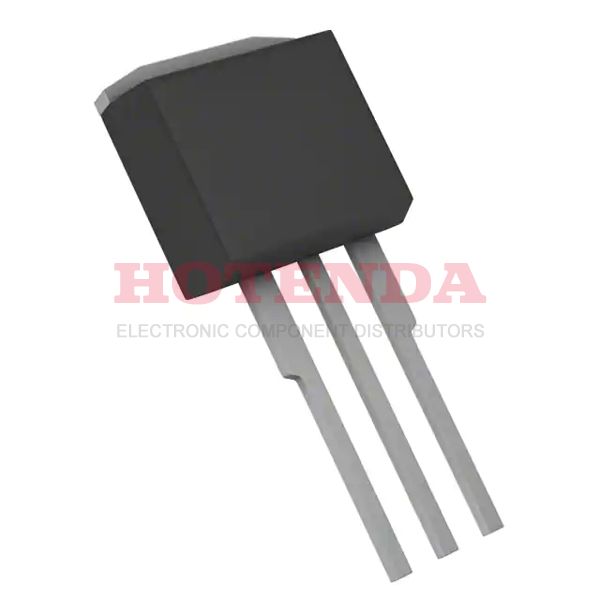

IRL3714LPBF

Manufacturer part number:IRL3714LPBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 20V 36A TO-262

Case Package:SOT-23

Datasheet:IRL3714LPBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I2Pak, TO-262AA
Supplier Device Package	TO-262
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2004
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	175°C
Min Operating Temperature	-55°C
Voltage - Rated DC	20V
Technology	MOSFET (Metal Oxide)
Current Rating	36A
Power Dissipation-Max	47W Tc
Element Configuration	Single
Power Dissipation	43W
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	20mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	670pF @ 10V
Current - Continuous Drain (Id) @ 25°C	36A Tc
Gate Charge (Qg) (Max) @ Vgs	9.7nC @ 4.5V
Rise Time	78ns
Drain to Source Voltage (Vdss)	20V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	4.5 ns
Turn-Off Delay Time	10 ns
Continuous Drain Current (ID)	36A
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	20V
Input Capacitance	670pF
Drain to Source Resistance	28mOhm
Rds On Max	20 mΩ
RoHS Status	RoHS Compliant
Lead Free	Lead Free
