Name: IRFHS8242TR2PBF
Brand: Infineon Technologies
SKU: IRFHS8242TR2PBF
Availability: InStock

new-10%

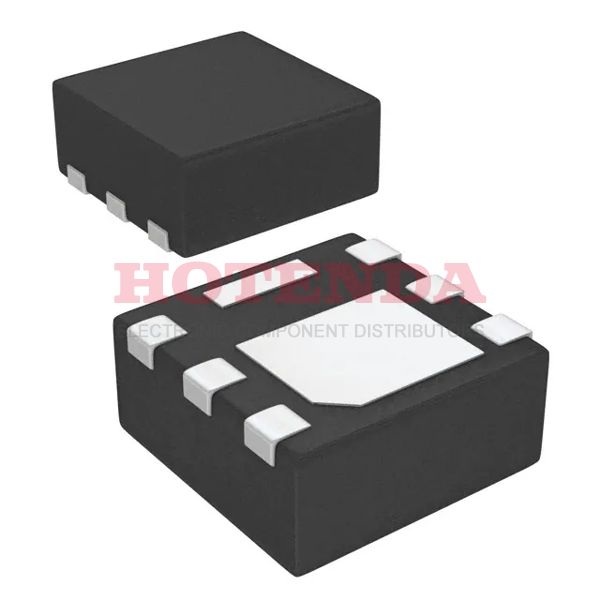

IRFHS8242TR2PBF

Manufacturer part number:IRFHS8242TR2PBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 25V 9.9A PQFN

Case Package:SOT-23

Datasheet:IRFHS8242TR2PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	6-PowerVDFN
Number of Pins	6
Supplier Device Package	6-PQFN (2x2)
Packaging	Cut Tape (CT)
Published	2013
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	2.1W
Technology	MOSFET (Metal Oxide)
Element Configuration	Single
Power Dissipation	2.1W
Turn On Delay Time	6.5 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	13mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id	2.35V @ 25μA
Input Capacitance (Ciss) (Max) @ Vds	653pF @ 10V
Current - Continuous Drain (Id) @ 25°C	9.9A Ta 21A Tc
Gate Charge (Qg) (Max) @ Vgs	10.4nC @ 10V
Rise Time	19ns
Drain to Source Voltage (Vdss)	25V
Fall Time (Typ)	5.3 ns
Turn-Off Delay Time	5.4 ns
Continuous Drain Current (ID)	9.9A
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	25V
Input Capacitance	653pF
Recovery Time	17 ns
Drain to Source Resistance	13mOhm
Rds On Max	13 mΩ
Nominal Vgs	1.8 V
Height	950μm
Length	2.1mm
Width	2.1mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
