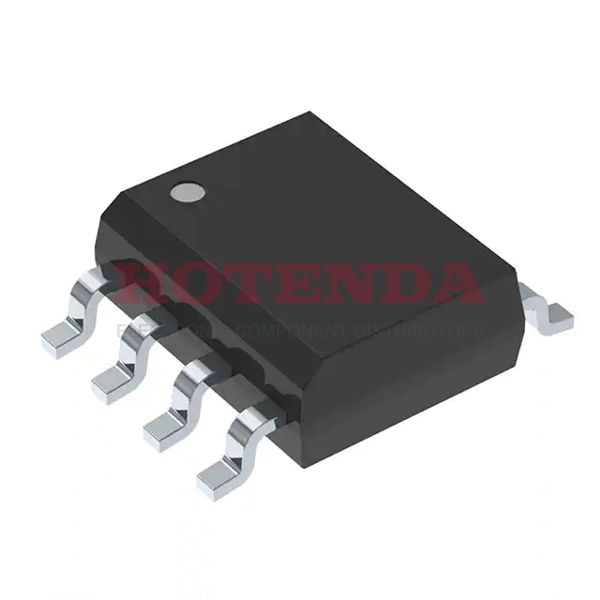

IRF7425PBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website
SOT-23
IRF7425PBF Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154, 3.90mm Width)
Surface Mount
YES
Transistor Element Material
SILICON
Operating Temperature
-55°C~150°C TJ
Packaging
Tube
Published
2005
Series
HEXFET®
JESD-609 Code
e3
Part Status
Discontinued
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
8
ECCN Code
EAR99
Terminal Finish
Matte Tin (Sn)
Additional Feature
ULTRA LOW RESISTANCE
Subcategory
Other Transistors
Technology
MOSFET (Metal Oxide)
Terminal Position
DUAL
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
260
[email protected] Reflow Temperature-Max (s)
30
JESD-30 Code
R-PDSO-G8
Qualification Status
Not Qualified
Number of Elements
1
Configuration
SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max
2.5W Ta
Operating Mode
ENHANCEMENT MODE
FET Type
P-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
8.2m Ω @ 15A, 4.5V
Vgs(th) (Max) @ Id
1.2V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
7980pF @ 15V
Current - Continuous Drain (Id) @ 25°C
15A Ta
Gate Charge (Qg) (Max) @ Vgs
130nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Drive Voltage (Max Rds On,Min Rds On)
2.5V 4.5V
Vgs (Max)
±12V
JEDEC-95 Code
MS-012AA
Drain Current-Max (Abs) (ID)
15A
Drain-source On Resistance-Max
0.0082Ohm
Pulsed Drain Current-Max (IDM)
60A
DS Breakdown Voltage-Min
20V
RoHS Status
ROHS3 Compliant
In-Stock:2735 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
IRF7425PBF Product Details
IRF7425PBF Description
The IRF7425PBF is a -20V single P-channel HEXFET? Power MOSFET utilizing advanced processing techniques to achieve the extremely low on-resistance per silicon area. This benefit provides the designer with an extremely efficient device for use in battery and load management applications. The package has been modified through a customized lead frame for enhanced thermal characteristics and multiple-die capability making it ideal for a variety of power applications.
IRF7425PBF Features
RoHS Compliant
Industry-leading quality
Industry-Standard Pinout
P-Channel MOSFET
Planar cell structure for wide SOA
Optimized for broadest availability from distribution partners
IRF7425PBF Applications
Induction furnaces
Arc furnaces and arc welders
Steel rolling mills
Large motors with periodic loading
Thyristor drives
