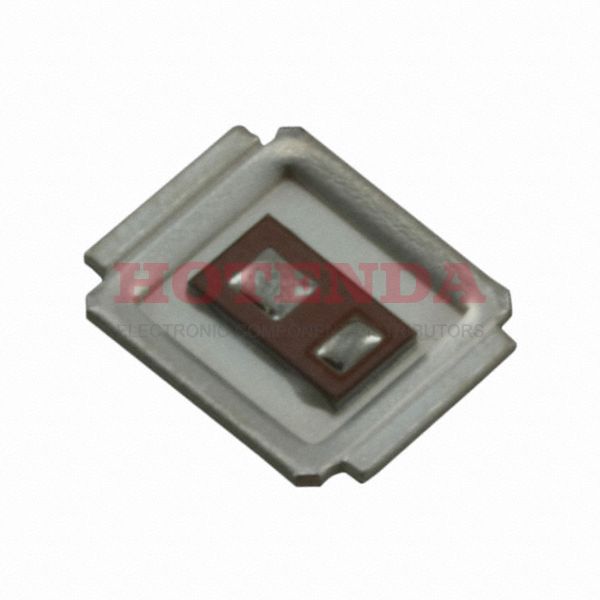

Name: IRF6610TR1
Brand: Infineon Technologies
SKU: IRF6610TR1
Availability: InStock

new-10%

IRF6610TR1

Manufacturer part number:IRF6610TR1

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 20V 15A DIRECTFET

Case Package:SOT-23

Datasheet:IRF6610TR1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DirectFET™ Isometric SQ
Number of Pins	6
Operating Temperature	-40°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2005
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Voltage - Rated DC	20V
Technology	MOSFET (Metal Oxide)
Current Rating	15A
Power Dissipation-Max	2.2W Ta 42W Tc
Power Dissipation	2.2W
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	6.8m Ω @ 15A, 10V
Vgs(th) (Max) @ Id	2.55V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	1520pF @ 10V
Current - Continuous Drain (Id) @ 25°C	15A Ta 66A Tc
Gate Charge (Qg) (Max) @ Vgs	17nC @ 4.5V
Rise Time	51ns
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	5.7 ns
Turn-Off Delay Time	15 ns
Continuous Drain Current (ID)	15A
Gate to Source Voltage (Vgs)	30V
Drain to Source Breakdown Voltage	150V
RoHS Status	Non-RoHS Compliant
Lead Free	Lead Free

About IRF6610TR1

The IRF6610TR1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 20V 15A DIRECTFET.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRF6610TR1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
