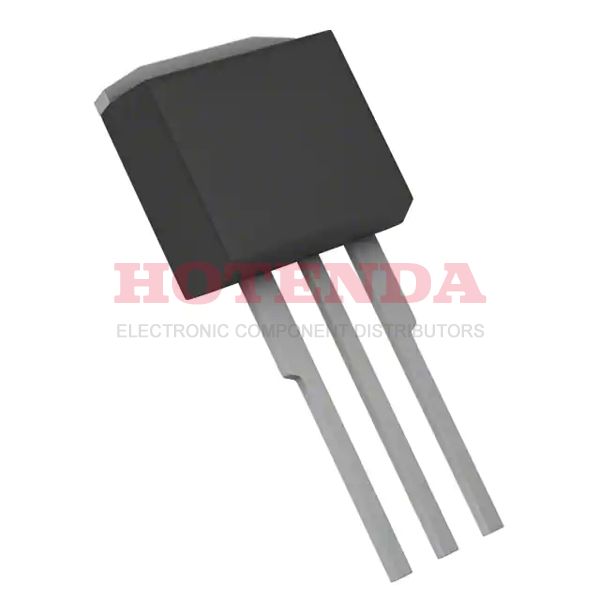

Name: IPI120N10S405AKSA1
Brand: Infineon Technologies
SKU: IPI120N10S405AKSA1
Availability: InStock

new-10%

IPI120N10S405AKSA1

Manufacturer part number:IPI120N10S405AKSA1

Manufacturer:Infineon Technologies

Description:Trans MOSFET N-CH 100V 120A 3-Pin TO-262 Tube

Case Package:SOT-23

Datasheet:IPI120N10S405AKSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I2Pak, TO-262AA
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2013
Series	Automotive, AEC-Q101, OptiMOS™
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	190W Tc
Operating Mode	ENHANCEMENT MODE
Case Connection	DRAIN
Turn On Delay Time	15 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	5.3m Ω @ 100A, 10V
Vgs(th) (Max) @ Id	3.5V @ 120μA
Halogen Free	Halogen Free
Input Capacitance (Ciss) (Max) @ Vds	6540pF @ 25V
Current - Continuous Drain (Id) @ 25°C	120A Tc
Gate Charge (Qg) (Max) @ Vgs	91nC @ 10V
Rise Time	10ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	35 ns
Turn-Off Delay Time	30 ns
Continuous Drain Current (ID)	120A
Gate to Source Voltage (Vgs)	20V
Max Dual Supply Voltage	100V
Pulsed Drain Current-Max (IDM)	480A
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead

About IPI120N10S405AKSA1

The IPI120N10S405AKSA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features Trans MOSFET N-CH 100V 120A 3-Pin TO-262 Tube.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IPI120N10S405AKSA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
