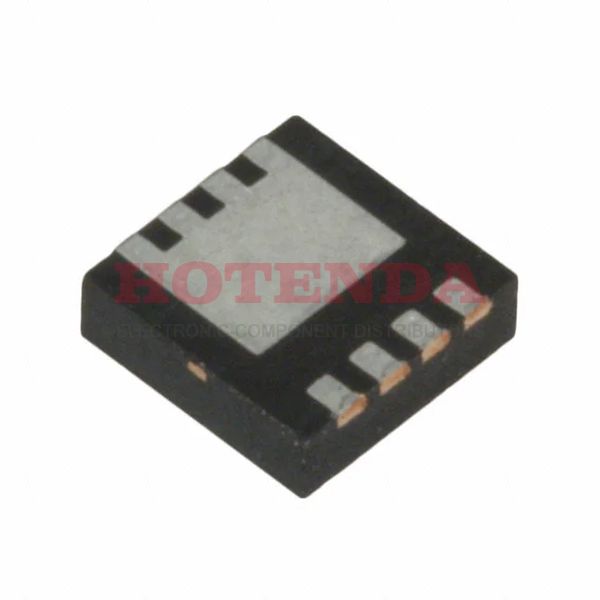

Name: IRFHM830TR2PBF
Brand: Infineon Technologies
SKU: IRFHM830TR2PBF
Availability: InStock

new-10%

IRFHM830TR2PBF

Manufacturer part number:IRFHM830TR2PBF

Manufacturer:Infineon Technologies

Description:MOSFET N-CH 30V 21A PQFN

Case Package:SOT-23

Datasheet:IRFHM830TR2PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-VQFN Exposed Pad
Number of Pins	8
Packaging	Cut Tape (CT)
Published	2005
Series	HEXFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	2.7W
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Power Dissipation	37W
Turn On Delay Time	12 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	3.8m Ω @ 20A, 10V
Vgs(th) (Max) @ Id	2.35V @ 50μA
Input Capacitance (Ciss) (Max) @ Vds	2155pF @ 25V
Current - Continuous Drain (Id) @ 25°C	21A Ta 40A Tc
Gate Charge (Qg) (Max) @ Vgs	31nC @ 10V
Rise Time	25ns
Fall Time (Typ)	9.2 ns
Turn-Off Delay Time	13 ns
Continuous Drain Current (ID)	21A
Threshold Voltage	1.8V
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	30V
Recovery Time	26 ns
Nominal Vgs	1.8 V
Height	990.6μm
Length	3.2766mm
Width	3.3mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About IRFHM830TR2PBF

The IRFHM830TR2PBF from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 30V 21A PQFN.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRFHM830TR2PBF, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
