Name: IPD038N04NGBTMA1
Brand: Infineon Technologies
SKU: IPD038N04NGBTMA1
Availability: InStock

new-10%

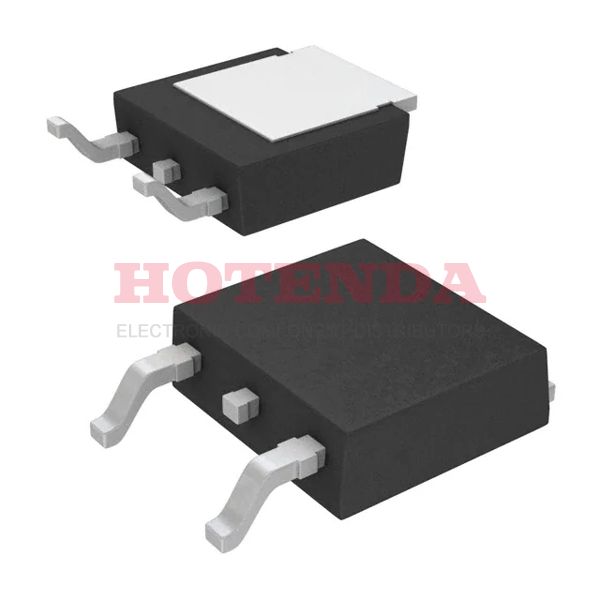

IPD038N04NGBTMA1

Manufacturer part number:IPD038N04NGBTMA1

Manufacturer:Infineon Technologies

Description:Trans MOSFET N-CH 40V 90A 3-Pin(2+Tab) TO-252

Case Package:SOT-23

Datasheet:IPD038N04NGBTMA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tape & Reel (TR)
Published	2011
Series	OptiMOS™
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	MATTE TIN
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	40
Pin Count	4
JESD-30 Code	R-PSSO-G2
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	94W Tc
Operating Mode	ENHANCEMENT MODE
Power Dissipation	94W
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	3.8m Ω @ 90A, 10V
Vgs(th) (Max) @ Id	4V @ 45μA
Input Capacitance (Ciss) (Max) @ Vds	4500pF @ 20V
Current - Continuous Drain (Id) @ 25°C	90A Tc
Gate Charge (Qg) (Max) @ Vgs	56nC @ 10V
Drain to Source Voltage (Vdss)	40V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Continuous Drain Current (ID)	90A
JEDEC-95 Code	TO-252AA
Gate to Source Voltage (Vgs)	20V
Drain-source On Resistance-Max	0.0038Ohm
Pulsed Drain Current-Max (IDM)	400A
DS Breakdown Voltage-Min	40V
Avalanche Energy Rating (Eas)	55 mJ
RoHS Status	RoHS Compliant
