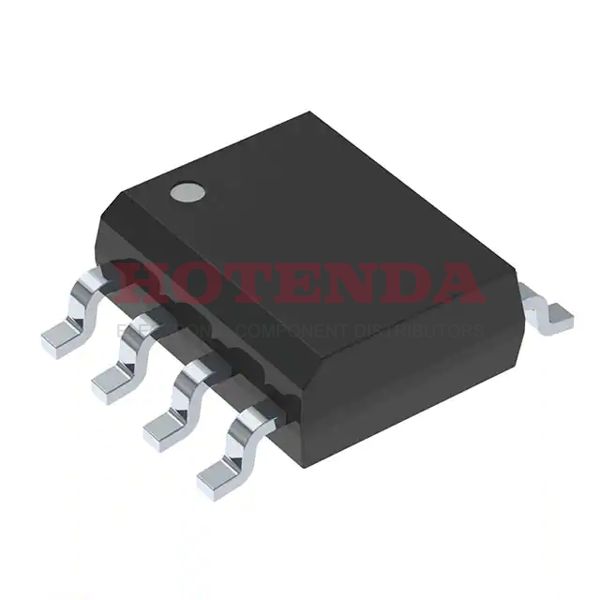

Name: ICE2BS01G
Brand: Infineon Technologies
SKU: ICE2BS01G
Availability: InStock

new-10%

ICE2BS01G

Manufacturer part number:ICE2BS01G

Manufacturer:Infineon Technologies

Description:8 Terminations8.5V~21V 8 Pin ICE2BS01 AC to DC power converter67kHz

Case Package:SOT-23

Datasheet:ICE2BS01G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8
Operating Temperature	-40°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2006
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	8
ECCN Code	EAR99
Subcategory	Switching Regulator or Controllers
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	1.27mm
Base Part Number	ICE2BS01
Pin Count	8
Input Voltage-Nom	15V
Analog IC - Other Type	SWITCHING CONTROLLER
Voltage - Supply (Vcc/Vdd)	8.5V~21V
Control Features	Soft Start
Input Voltage (Min)	9V
Topology	Flyback
Control Mode	CURRENT-MODE
Output Current-Max	0.7A
Frequency - Switching	67kHz
Input Voltage (Max)	21V
Control Technique	PULSE WIDTH MODULATION
Rise Time	160ns
Fall Time (Typ)	65 ns
Switcher Configuration	SINGLE
Internal Switch(s)	No
Fault Protection	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Max Duty Cycle	77 %
Duty Cycle	72%
Output Isolation	Isolated
Voltage - Start Up	13.5V
Height Seated (Max)	1.73mm
Length	5mm
Width	4mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

ICE2BS01G Product Details

ICE2BS01G Overview

There is a ac to dc converter embedded in package 8-SOIC (0.154, 3.90mm Width) .There is a AC/DC power converter of Tape & Reel (TR) available.Surface Mount mounts this AC/DC converter.To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .The AC DC converter uses a type SWITCHING CONTROLLER analog integrated circuit.At this point, the switching frequency reaches 67kHz .Supply voltage (Vcc/Vdd) does not need to exceed 8.5V~21V .In total, it has 8 terminations.In this ac/dc converter, there are 8 pins.There are 8 pins in the ac-dc converter.The ac dc converters are suitable for mounting by Surface Mount .Based on the ICE2BS01 family, you can search for similar acdc converters.Switching Regulator or Controllers includes the ac to dc conversions.On the basis of a unique technique, it is possible to ensure an input voltage with the maximum value of 21V .Currently, the maximum current that the ac to dc inverter can take is 0.7A .
