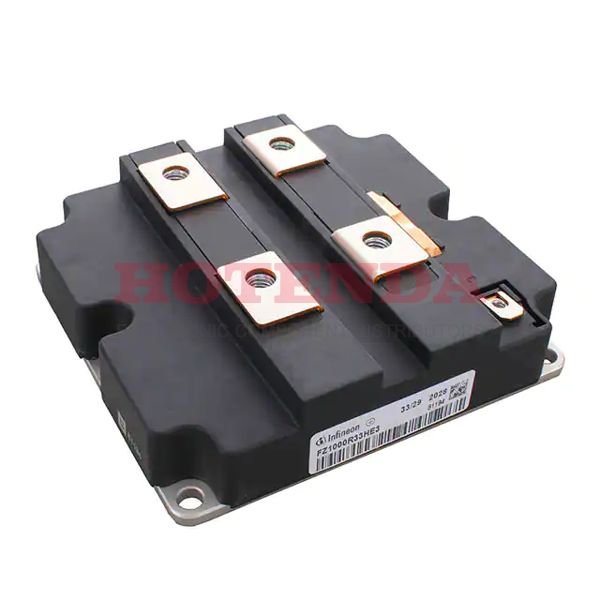

FZ1000R33HE3BPSA1 Description
IGBTs are widely used as switching devices in the inverter circuit (for DC-to-AC conversion) for driving small to large motors. IGBTs for inverter applications are used in home appliances such as air conditioners and refrigerators, industrial motors, and automotive main motor controllers to improve their efficiency.
FZ1000R33HE3BPSA1 Features
? Electrical features
- VCES = 3300 V
- IC nom = 1000 A / ICRM = 2000 A
- Unbeatable robustness
- High DC stability
- High short-circuit capability
- Low switching losses
- Low VCE,sat
- Tvj,op = 150°C
- VCE,sat with positive temperature coefficient
? Mechanical features
- AlSiC base plate for increased thermal cycling capability
- Package with CTI > 600
- IHM B housing
- Isolated base plate
FZ1000R33HE3BPSA1 Applications
? Chopper applications
? Medium-voltage converters
? Motor drives
? Traction drives
? UPS systems
? Wind turbines
