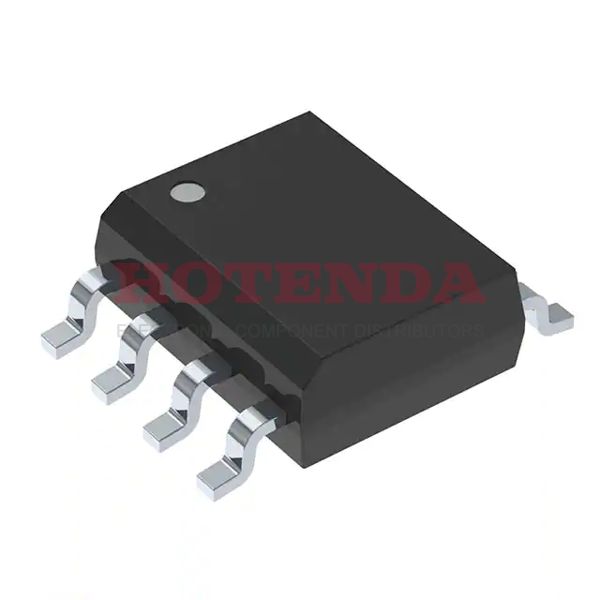

Name: BSO303SPNTMA1
Brand: Infineon Technologies
SKU: BSO303SPNTMA1
Availability: InStock

new-10%

BSO303SPNTMA1

Manufacturer part number:BSO303SPNTMA1

Manufacturer:Infineon Technologies

Description:MOSFET Dual P-Channel -30V MOSFET

Case Package:SOT-23

Datasheet:BSO303SPNTMA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Surface Mount	YES
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2002
Series	OptiMOS™
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Additional Feature	AVALANCHE RATED,LOGIC LEVEL COMPATIBLE
HTS Code	8541.29.00.95
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-G8
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	2.35W Ta
Operating Mode	ENHANCEMENT MODE
FET Type	P-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	21m Ω @ 8.9A, 10V
Vgs(th) (Max) @ Id	2V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds	1754pF @ 25V
Current - Continuous Drain (Id) @ 25°C	8.9A Ta
Gate Charge (Qg) (Max) @ Vgs	69nC @ 10V
Drain to Source Voltage (Vdss)	30V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Drain Current-Max (Abs) (ID)	8.9A
Drain-source On Resistance-Max	0.021Ohm
Pulsed Drain Current-Max (IDM)	35.6A
DS Breakdown Voltage-Min	30V
Avalanche Energy Rating (Eas)	97 mJ
RoHS Status	Non-RoHS Compliant

About BSO303SPNTMA1

The BSO303SPNTMA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET Dual P-Channel -30V MOSFET.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the BSO303SPNTMA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
