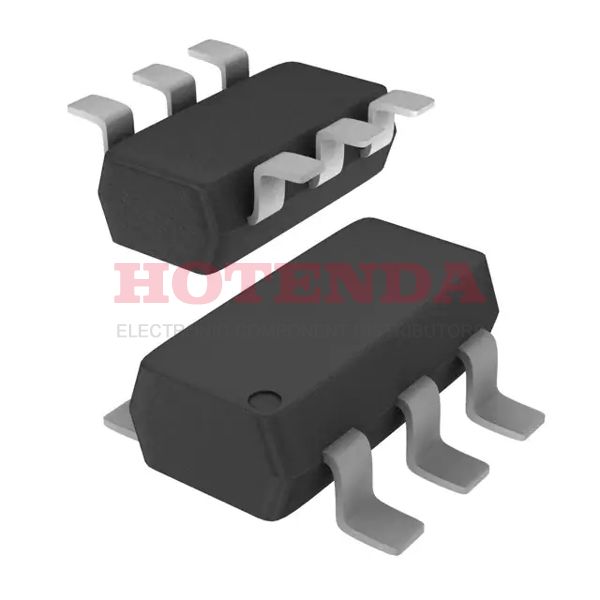

BSL307SP Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Surface Mount
Package / Case
SOT-23-6 Thin, TSOT-23-6
Surface Mount
YES
Transistor Element Material
SILICON
Operating Temperature
-55°C~150°C TJ
Packaging
Tape & Reel (TR)
Published
2001
Series
OptiMOS™
Pbfree Code
yes
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
6
ECCN Code
EAR99
Additional Feature
AVALANCHE RATED, LOGIC LEVEL COMPATIBLE
HTS Code
8541.29.00.95
Subcategory
Other Transistors
Technology
MOSFET (Metal Oxide)
Terminal Position
DUAL
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)
NOT SPECIFIED
Pin Count
6
JESD-30 Code
R-PDSO-G6
Qualification Status
Not Qualified
Number of Elements
1
Configuration
SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max
2W Ta
Operating Mode
ENHANCEMENT MODE
FET Type
P-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
43m Ω @ 5.5A, 10V
Vgs(th) (Max) @ Id
2V @ 40μA
Input Capacitance (Ciss) (Max) @ Vds
805pF @ 25V
Current - Continuous Drain (Id) @ 25°C
5.5A Ta
Gate Charge (Qg) (Max) @ Vgs
29nC @ 10V
Drain to Source Voltage (Vdss)
30V
Drive Voltage (Max Rds On,Min Rds On)
4.5V 10V
Vgs (Max)
±20V
Drain Current-Max (Abs) (ID)
5.5A
Drain-source On Resistance-Max
0.043Ohm
Pulsed Drain Current-Max (IDM)
22A
DS Breakdown Voltage-Min
30V
Avalanche Energy Rating (Eas)
44 mJ
RoHS Status
Non-RoHS Compliant
In-Stock:1697 items
BSL307SP Product Details
BSL307SP Description
BSL307SP is a p-channel power MOSFET. BSL307SP MOSFET consistently meets the highest quality and performance demands in key specifications for power system design such as on-state resistance and figure of merit characteristics.
BSL307SP Features
Enhancement mode
Logic level
Avalanche rated
Fast switching
Dv/dt rated
Pb-free lead-plating
RoHS compliant, Halogen-free
Quflified according to AEC Q101
BSL307SP Applications
DC-DC
Consumer
Power Management Functions
Motor control
On-board charger
Logic level translators
Power MOSFET gate drivers
Other switching applications
