Name: HR25A-7R-8S
Brand: Hirose Electric Co Ltd
SKU: HR25A-7R-8S
Price: 18.94000 USD
Availability: InStock

new

HR25A-7R-8S

Manufacturer part number:HR25A-7R-8S

Manufacturer:Hirose Electric Co Ltd

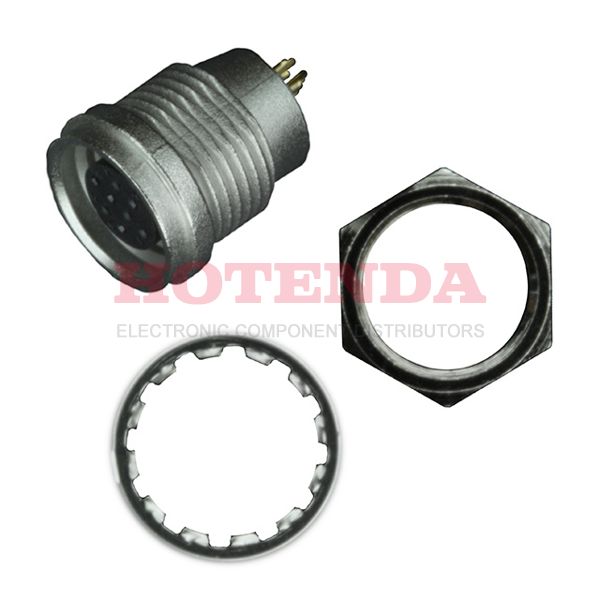

Description:Receptacle, Female Sockets Zinc Alloy Panel Mount 8 Positions Solder Cup Gold Nickel Bulk Keyed Push-Pull

Case Package:SOT-23

Datasheet:HR25A-7R-8S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Mount	Bulkhead, Free Hanging, Panel, Rear Side Nut
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Rear Side Nut
Shell Material	Zinc Alloy
Insert Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-25°C~85°C
Packaging	Bulk
Series	HR25A
Published	1998
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Receptacle, Female Sockets
Number of Positions	8
Color	Silver
Applications	Industrial
Gender	Receptacle
Fastening Type	Push-Pull
Voltage - Rated DC	42V
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	8
Orientation	Keyed
Current Rating	1A
Shell Finish	Nickel
Shell Size - Insert	7
Voltage - Rated AC	30V
Contact Gender	Female
Empty Shell	NO
Backshell Type	SOLID
Contact Resistance	30mOhm
Insulation Resistance	1GOhm
Coupling Type	SNAP
Wire/Cable Gauge	30 AWG
Contact Finish Thickness - Mating	8.00μin 0.203μm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

HR25A-7R-8S Product Details

HR25A-7R-8S Overview

A Receptacle, Female Sockets package is included with it.Its mounting type is Panel Mount.Packaging is performed using a Bulk case.It is part of the HR25A Series of products.Bulkhead, Free Hanging, Panel, Rear Side Nut mounts the part.There is no operating temperature for the device.
