M83723/96R14076-LC

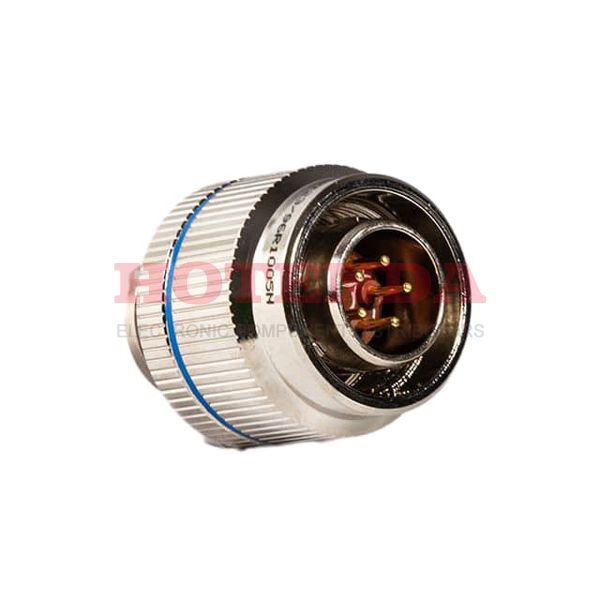

  • M83723/96R14076-LC - Aluminum
  • M83723/96R14076-LC - Aluminum

M83723/96R14076-LC

M83723/96R14076-LC

Aero-Electric Connector

Aluminum

SOT-23

M83723/96R14076-LC Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Contact MaterialBeryllium Copper
Shell Material Aluminum
Number of Terminals 7
Mounting Style Cable
ECCN (US) EAR99
Military Standard Series Series III
Mounting Cable Mount
Body Orientation Straight
Termination Method Crimp
Shell Size / Insert Arrangement 14-7
Less Contact Yes
Maximum Voltage Rating 850VDC|600VAC
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 200
Mating Style Threaded
Mating Cycle (Cycles) 250
Product Diameter (mm) 31.39
Product Depth (mm) Not Required(mm)
Operating Temp Range -65C to 200C
Rad Hardened No
Contact Classification 7Signal
Part StatusActive
Type Circular
Gender PL
Military Standard MIL-DTL-83723
Number of Contacts 7
Contact Gender PIN
Polarization 6
Number of Ports1
Family M83723
Wire Size (AWG) 16-20
Shell PlatingElectroless Nickel
Voltage Rating850VDC/600VAC
Strain Relief No
Product Length (mm) 34.8
Product Height (mm) Not Required(mm)
RoHS StatusRoHS non-compliant
In-Stock:97 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$126.40000$126.4
500$125.136$62568
1000$123.872$123872
1500$122.608$183912
2000$121.344$242688
2500$120.08$300200

M83723/96R14076-LC Product Details

M83723/96R14076-LC Overview




M83723/96R14076-LC Features




M83723/96R14076-LC Applications


There are a lot of Aero-Electric Connector
M83723/96R14076-LC Circular Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
