Name: HIF3FB-64PA-2.54DSA(71)
Brand: Hirose Electric Co Ltd
SKU: HIF3FB-64PA-2.54DSA(71)
Price: 8.42000 USD
Availability: InStock

new

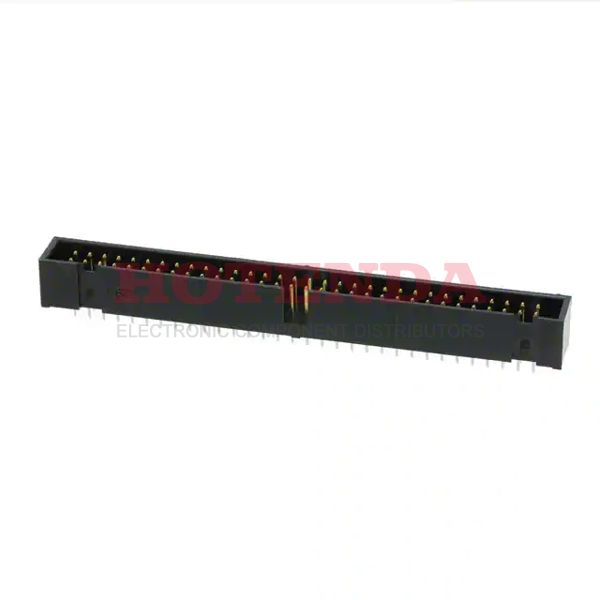

HIF3FB-64PA-2.54DSA(71)

Manufacturer part number:HIF3FB-64PA-2.54DSA(71)

Manufacturer:Hirose Electric Co Ltd

Description:HIF3FB-64PA-2.54DSA(71) datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:HIF3FB-64PA-2.54DSA(71) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Option 1	LOCKING
Operating Temperature	-55°C~85°C
Packaging	Tray
Series	HIF3FB
JESD-609 Code	e4
Feature	Keying Slot
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	64
Number of Rows	2
Voltage - Rated	200V
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Insulation Height	0.350 8.89mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Reach Compliance Code	unknown
Current Rating	1A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	3.495 inch
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.110 2.79mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.236 6.00mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.335 inch
UL Flammability Code	94V-0
Body Depth	0.35 inch
Rated Current (Signal)	1A
Contact Resistance	15mOhm
Insulation Resistance	1000000000Ohm
Mating Contact Pitch	0.1 inch
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	650VAC V
Durability	500 Cycles
Contact Finish Thickness - Mating	8.00μin 0.203μm
Contact Finish Thickness - Post	78.7μin 2.00μm
Length - Termination	0.11 inch
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Lead Free	Lead Free

HIF3FB-64PA-2.54DSA(71) Product Details

HIF3FB-64PA-2.54DSA(71) Overview

It comes in Header packaging.There is a Through Hole mounting type for the device.An Tray case is utilized for packaging the product.It belongs to the HIF3FB Series of products.Other features include LOW PROFILE, to name just a few.A number of features make it more powerful because of its Keying Slot feature.-55°C~85°C Operating Temperature is what the device runs at.
