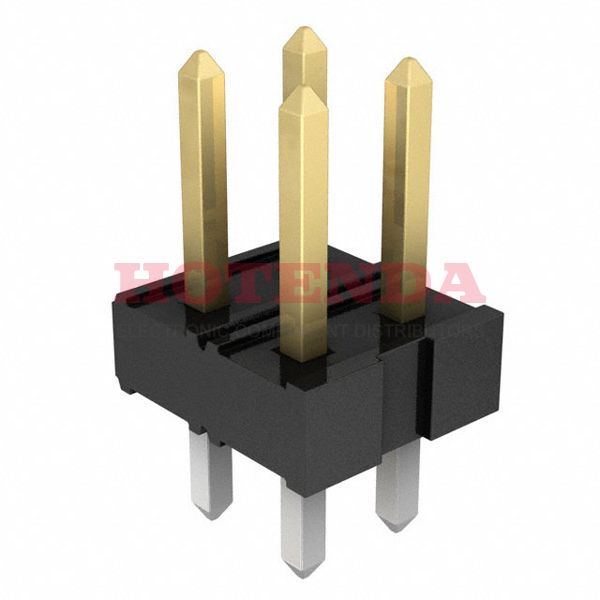

Name: 0877580416
Brand: Molex
SKU: 0877580416
Price: 0.56000 USD
Availability: InStock

new-10%

0877580416

Manufacturer part number:0877580416

Manufacturer:Molex

Description:0877580416 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0877580416 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Packaging	Tray
Series	Milli-Grid 87758
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Breakaway
Number of Positions	4
Applications	Automotive, General Purpose, Telecommunications
Number of Rows	2
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Insulation Height	0.059 1.50mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.102 2.60mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.157 4.00mm
Overall Contact Length	0.319 8.10mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0877580416 Product Details

0877580416 Overview

A Header, Breakaway package is included with it.A Through Hole mounting type is specified for the device.To package the product, we use a Tray case.Product number Milli-Grid 87758 belongs to the Milli-Grid 87758 Series.A possible application for the device is Automotive, General Purpose, Telecommunications.
