Name: FH19C-17S-0.5SH(05)
Brand: Hirose Electric Co Ltd
SKU: FH19C-17S-0.5SH(05)
Availability: InStock

new-10%

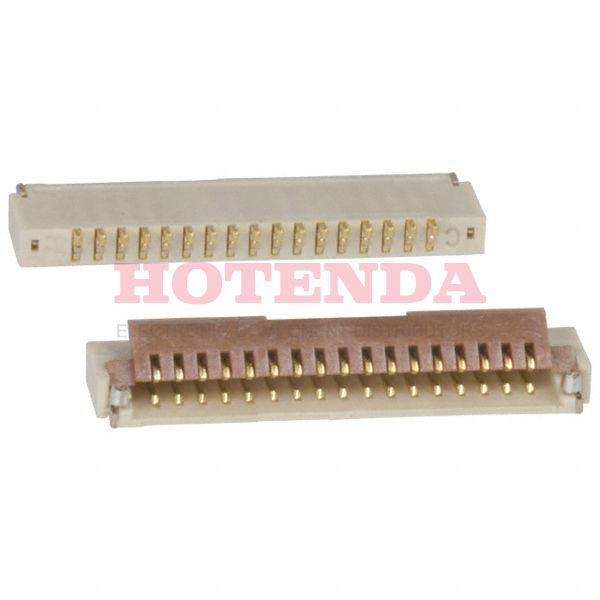

FH19C-17S-0.5SH(05)

Manufacturer part number:FH19C-17S-0.5SH(05)

Manufacturer:Hirose Electric Co Ltd

Description:FH19C-17S-0.5SH(05) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH19C-17S-0.5SH(05) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH19C
JESD-609 Code	e3
Feature	Solder Retention, Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	17
Number of Rows	1
Voltage - Rated	50V
Additional Feature	ZIF, LOW PROFILE
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	17
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.413 inch
Number Of PCB Rows	1
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.118 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Body Depth	0.118 inch
Contact Style	BELLOWED TYPE
Contact Resistance	100mOhm
Insulation Resistance	500000000Ohm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Brown
Plating Thickness	FLASH inch
Height Above Board	0.035 0.88mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FH19C-17S-0.5SH(05) Product Details

FH19C-17S-0.5SH(05) Overview

A FFC/FPC CONNECTOR package is included with it.Surface Mount, Right Angle is the mounting type for the device.To package the product, a Tape & Reel (TR) case is used.It's part of the FH19C Series.Additionally, there are other features such as ZIF, LOW PROFILE.In many ways, it is more powerful due to its Solder Retention, Zero Insertion Force (ZIF) feature.This part is mounted by Surface Mount. -55°C~85°C Operating Temperature is what the device runs at.
