Name: XF2L-0725-1
Brand: Omron Electronics Inc-EMC Div
SKU: XF2L-0725-1
Availability: InStock

new-10%

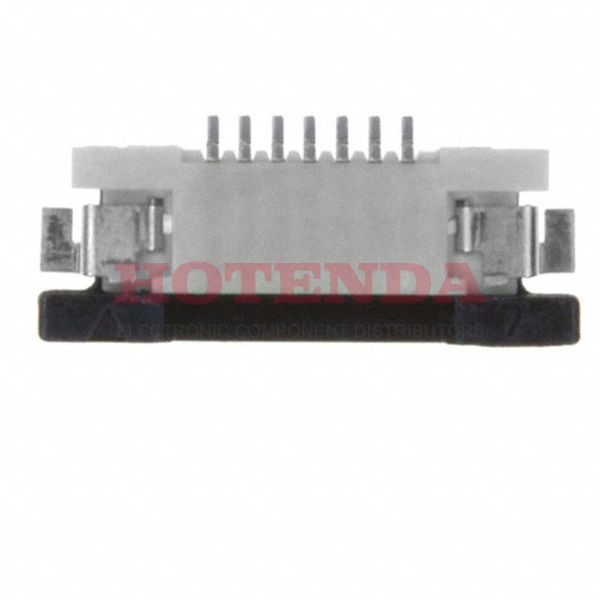

XF2L-0725-1

Manufacturer part number:XF2L-0725-1

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2L-0725-1 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2L-0725-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2004
Series	XF2L
JESD-609 Code	e3
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Number of Positions	7
Number of Rows	1
Gender	Female
Additional Feature	LOW PROFILE, ZIF
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	50V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	7
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Tin Alloy
Reliability	COMMERCIAL
Number Of PCB Rows	1
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Housing Color	Natural
Contact Style	SINGLE PRONG
Dielectric Withstanding Voltage	250VAC V
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	30
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight
Locking Feature	Slide Lock
Actuator Color	Black
Height	1.2mm
Length	8.4mm
Width	3.45mm
Contact Finish Thickness	78.7μin 2.00μm
Plating Thickness	80μin
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

XF2L-0725-1 Product Details

XF2L-0725-1 Overview

There is a Surface Mount, Right Angle mounting type for the device.It is necessary to use a Tape & Reel (TR) case for packaging the product.It is part of the XF2L Series of products.In addition, there are other features, such as LOW PROFILE, ZIF, to mention just a few.This feature makes it more powerful in a number of ways due to its Zero Insertion Force (ZIF) feature.There is a Surface Mount mount on the part.As a result, the device runs at -30°C~85°C Operating Temperature.
