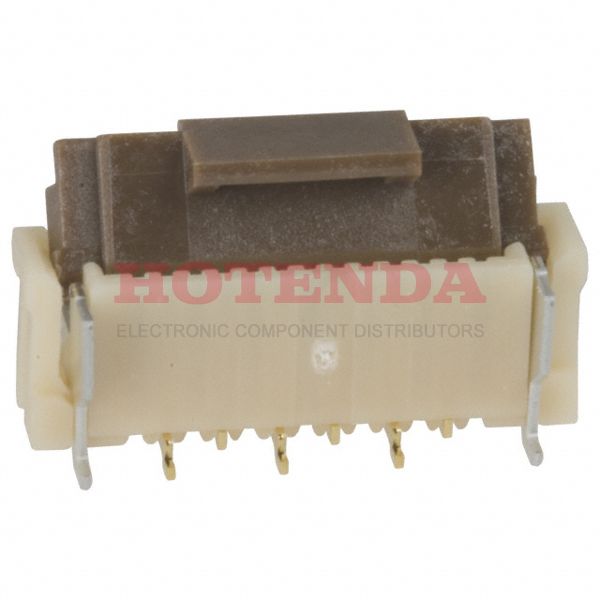

Name: FH12-6S-1SV(55)
Brand: Hirose Electric Co Ltd
SKU: FH12-6S-1SV(55)
Availability: InStock

new-10%

FH12-6S-1SV(55)

Manufacturer part number:FH12-6S-1SV(55)

Manufacturer:Hirose Electric Co Ltd

Description:FH12-6S-1SV(55) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH12-6S-1SV(55) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2011
Series	FH12
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	6
Number of Rows	1
Gender	Female
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.039 1.00mm
Total Number of Contacts	6
Current Rating	500mA
Contact Finish	Gold
Lead Pitch	1mm
UL Flammability Code	94V-0
Housing Color	Beige
Contact Resistance	50mOhm
Max Voltage Rating (AC)	50V
Max Current Rating	400mA
Wire/Cable Type	Straight
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Locking Feature	Flip Lock
Actuator Color	Brown
Contact Location	Bottom
Length	9.9mm
Width	3.8mm
Height Above Board	0.142 3.60mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FH12-6S-1SV(55) Product Details

FH12-6S-1SV(55) Overview

Packaging for this item is FFC/FPC CONNECTOR.Surface Mount is the mounting type for the device.An orange Tape & Reel (TR) case is used to package the product.It's part of the FH12 Series.With its Zero Insertion Force (ZIF) feature, it is more powerful in many ways.Surface Mount is mounting the part.Operating temperature is -40°C~85°C.
