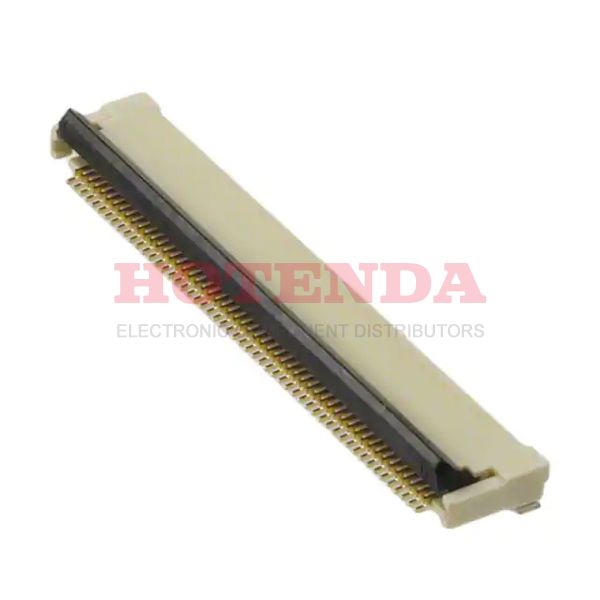

Name: XF2M54151AHR100BYOMZ
Brand: Omron Electronics Inc-EMC Div
SKU: XF2M54151AHR100BYOMZ
Availability: InStock

new-10%

XF2M54151AHR100BYOMZ

Manufacturer part number:XF2M54151AHR100BYOMZ

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2M54151AHR100BYOMZ datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2M54151AHR100BYOMZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Series	XF2M
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	54
Voltage - Rated	50V
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Contact Finish	Gold
Housing Color	Natural
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered
Locking Feature	Rotary Lock, Backlock
Actuator Color	Black
Contact Finish Thickness	5.90μin 0.150μm
Height Above Board	0.083 2.10mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0

XF2M54151AHR100BYOMZ Product Details

XF2M54151AHR100BYOMZ Overview

The device's mounting type is Surface Mount, Right Angle.We package the product with a Tape & Reel (TR) case.As a product of the XF2M Series, it can be found in this category.Device runs at -30°C~85°C Operating Temperature.
