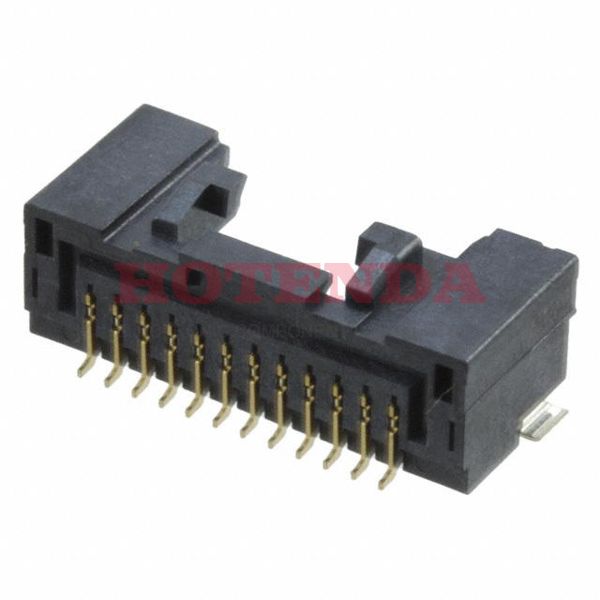

Name: DF50A-12P-1H(51)
Brand: Hirose Electric Co Ltd
SKU: DF50A-12P-1H(51)
Price: 1.36000 USD
Availability: InStock

new-10%

DF50A-12P-1H(51)

Manufacturer part number:DF50A-12P-1H(51)

Manufacturer:Hirose Electric Co Ltd

Description:DF50A-12P-1H(51) datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:DF50A-12P-1H(51) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Insulation Material	Polyester
Housing Material	Polymer
Operating Temperature	-35°C~85°C
Packaging	Cut Tape (CT)
Published	2013
Series	DF50
Feature	Solder Retention
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	12
Number of Rows	1
Voltage - Rated	100V
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Blade
Orientation	Right Angle
Insulation Height	0.239 6.07mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.039 1.00mm
Insulation Color	Black
Shrouding	Shrouded - 4 Wall
Contact Gender	Male
Insulation Resistance	500MOhm
Contact Finish Thickness - Mating	2.00μin 0.051μm
Contact Finish Thickness - Post	2.00μin 0.051μm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Lead Free	Lead Free

DF50A-12P-1H(51) Product Details

DF50A-12P-1H(51) Overview

Packaging for this item is Header.This device is mounted in the Surface Mount, Right Angle position.It is necessary to use a Cut Tape (CT) case for packaging the product.This product is part of the DF50 Series.A number of benefits can be derived from the Solder Retention feature of this application.There's a Surface Mount mount on the part.Operating temperature is -35°C~85°C.
