Name: DF9-21S-1V(32)
Brand: Hirose Electric Co Ltd
SKU: DF9-21S-1V(32)
Price: 1.39000 USD
Availability: InStock

new-10%

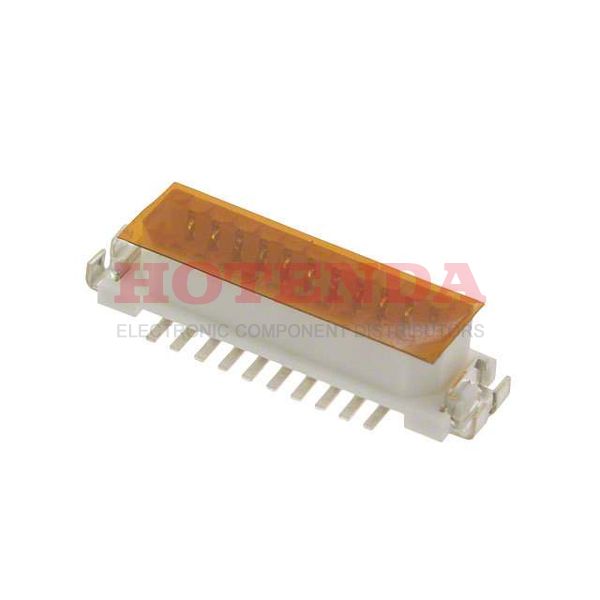

DF9-21S-1V(32)

Manufacturer part number:DF9-21S-1V(32)

Manufacturer:Hirose Electric Co Ltd

Description:DF9-21S-1V(32) datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:DF9-21S-1V(32) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide
Packaging	Tape & Reel (TR)
Published	2003
Series	DF9
JESD-609 Code	e3
Feature	Board Guide, Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	21
Number of Rows	2
Gender	Female
Voltage - Rated	150V
Additional Feature	POLARIZED
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.039 1.00mm
Total Number of Contacts	21
Orientation	Straight
Reach Compliance Code	unknown
Current Rating	500mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Tin
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	1mm
PCB Contact Pattern	STAGGERED
Body Breadth	0.165 inch
Operating Temperature (Min)	-45°C
UL Flammability Code	94V-0
Housing Color	Beige
Body Depth	0.13 inch
Rated Current (Signal)	0.5A
Contact Resistance	50mOhm
Insulation Resistance	500000000Ohm
Polarization Key	POLARIZED HOUSING
Durability	30 Cycles
Contact Pattern	STAGGERED
Contact Finish Thickness	39.4μin 1.00μm
Height Above Board	0.130 3.30mm
Stack Height (Mating)	4.3mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

DF9-21S-1V(32) Product Details

DF9-21S-1V(32) Overview

You get it in Receptacle, Outer Shroud Contacts packaging.Packaging the product involves using a Tape & Reel (TR) case.This device is mounted in the Surface Mount position.Among the products in the DF9 Series, it is one of the most popular.When operating, it is possible to ensure that Board Guide, Solder Retention is maintained.You'll need a Surface Mount socket to mount it.To name a few, there is also POLARIZED.
