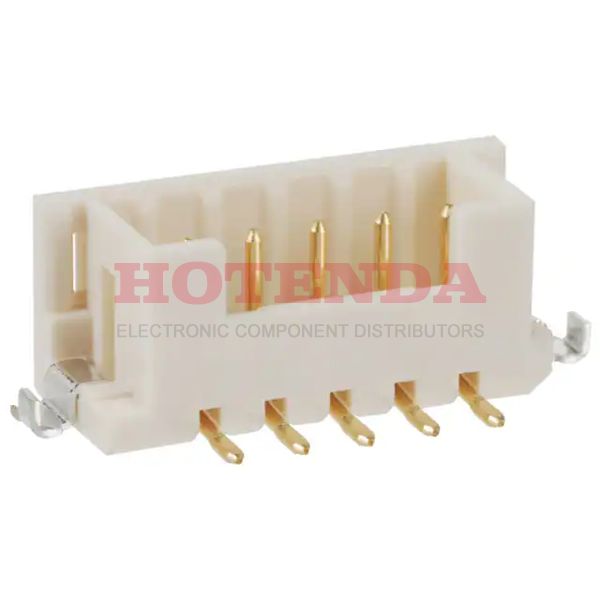

Name: DF3EA-5P-2V(51)
Brand: Hirose Electric Co Ltd
SKU: DF3EA-5P-2V(51)
Price: 0.89000 USD
Availability: InStock

new-10%

DF3EA-5P-2V(51)

Manufacturer part number:DF3EA-5P-2V(51)

Manufacturer:Hirose Electric Co Ltd

Description:DF3EA-5P-2V(51) datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:DF3EA-5P-2V(51) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mounting Type	Surface Mount
Contact Shape	Circular
Insulation Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Series	DF3
Feature	Solder Retention
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	5
Number of Rows	1
Voltage - Rated	250VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	Varies by WireGAuge
Insulation Height	0.232 5.90mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.079 2.00mm
Insulation Color	Beige
Shrouding	Shrouded - 4 Wall
Contact Finish Thickness - Mating	8.00μin 0.203μm
Stack Height (Mating)	7.5mm 7.7mm 8.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

DF3EA-5P-2V(51) Product Details

DF3EA-5P-2V(51) Overview

Packaging is Header.Surface Mount is the type of mounting for the device.Packaging for the product is carried out via a Tape & Reel (TR) case.DF3 Series product.A number of advantages are provided by its Solder Retention feature.It operates at an operating temperature of -55°C~105°C.
