Name: 155226-5303-RB
Brand: 3M
SKU: 155226-5303-RB
Price: 10.57000 USD
Availability: InStock

new

155226-5303-RB

Manufacturer part number:155226-5303-RB

Manufacturer:3M

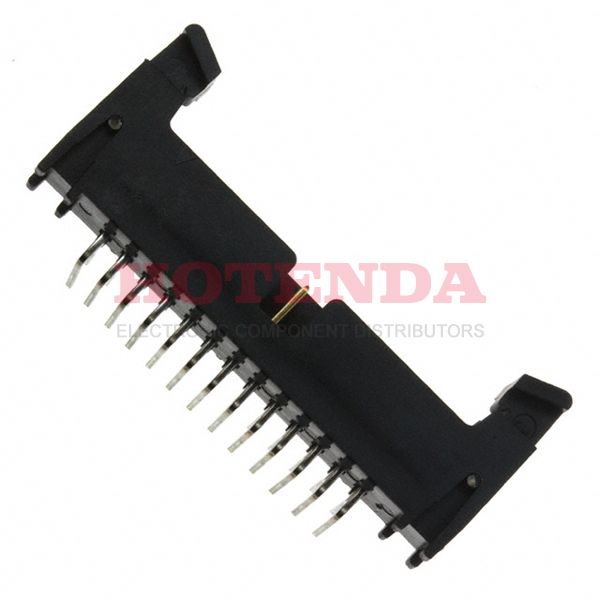

Description:155226-5303-RB datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from 3M stock available on our website

Case Package:SOT-23

Datasheet:155226-5303-RB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-55°C~105°C
Packaging	Tray
Published	2007
Series	1552
Feature	Keying Slot
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	26
Color	Black
Number of Rows	2
Gender	Male
Fastening Type	Latch Lock/Eject Hooks
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	1.25A
Pitch	2.0066mm
Insulation Height	0.247 6.28mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	1A
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.155 3.94mm
Shrouding	Shrouded - 4 Wall
Lead Pitch	2mm
Number of Contacts	26
Contact Finish - Post	Tin
Contact Length - Mating	0.150 3.81mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	200.0μin 5.08μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

155226-5303-RB Product Details

155226-5303-RB Overview

Currently, it is packaged in Header.This device has a Through Hole, Right Angle mounting type.To package the product, a Tray case is used.A member of the 1552 Series.A number of advantages are provided by its Keying Slot feature.Through Hole represents the mounting point for the part.-55°C~105°C Operating Temperature is what the device runs at.
