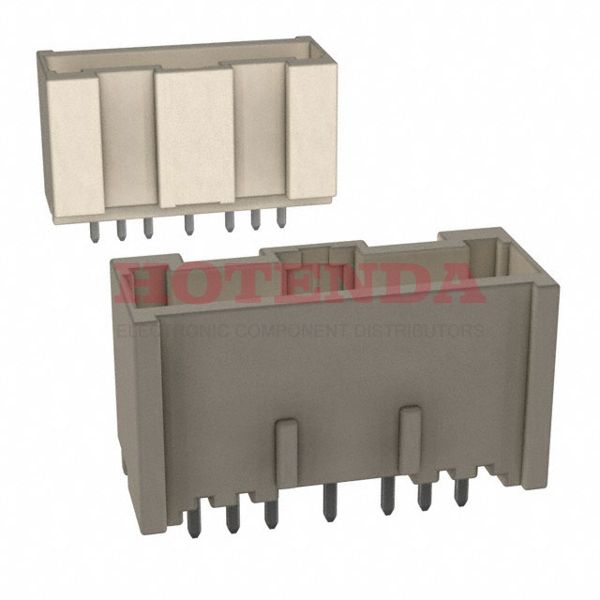

Name: DF1EC-7P-2.5DSA(36)
Brand: Hirose Electric Co Ltd
SKU: DF1EC-7P-2.5DSA(36)
Price: 1.06000 USD
Availability: InStock

new-10%

DF1EC-7P-2.5DSA(36)

Manufacturer part number:DF1EC-7P-2.5DSA(36)

Manufacturer:Hirose Electric Co Ltd

Description:DF1EC-7P-2.5DSA(36) datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:DF1EC-7P-2.5DSA(36) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon
Operating Temperature	-35°C~85°C
Packaging	Bulk
Series	DF1E
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	7
Number of Rows	1
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Type	Male Pin
Current Rating (Amps)	3A
Insulation Height	0.425 10.80mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.098 2.50mm
Insulation Color	Natural
Contact Length - Post	0.142 3.60mm
Shrouding	Shrouded - 4 Wall
Contact Length - Mating	0.177 4.50mm
Contact Finish Thickness - Mating	39.4μin 1.00μm
Stack Height (Mating)	14.3mm 15.8mm 19.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

DF1EC-7P-2.5DSA(36) Product Details

DF1EC-7P-2.5DSA(36) Overview

Packaging is in the form of Header.Through Hole is the type of mounting for the device.We pack the product in a Bulk case.The product is a part of the DF1E Series.The part is mounted by Through Hole.There is no operating temperature for the device.
