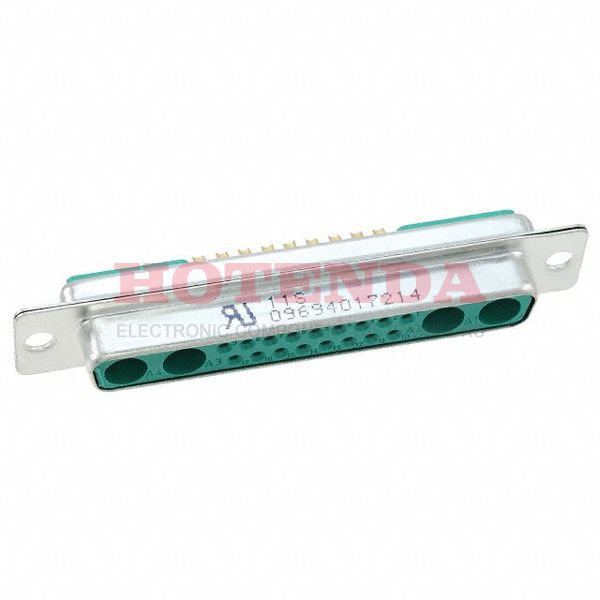

Name: 09694017214
Brand: HARTING
SKU: 09694017214
Price: 11.37000 USD
Availability: InStock

new

09694017214

Manufacturer part number:09694017214

Manufacturer:HARTING

Description:09694017214 datasheet pdf and D-Sub Connectors product details from HARTING stock available on our website

Case Package:SOT-23

Datasheet:09694017214 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	NOT SPECIFIED
Contact Plating	Gold
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Dielectric Material	Polyester Thermoplastic, Glass Filled
Housing Material	Glass
Shell Material, Finish	Steel, Tin Plated
Operating Temperature	-55°C~125°C
Packaging	Bulk
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder Cup
Connector Type	Receptacle, Female Sockets
Number of Positions	21 (17 + 4 Coax or Power)
Color	Green
Number of Rows	2
Gender	Receptacle
Contact Finish - Mating	NOT SPECIFIED
MIL Conformance	YES
DIN Conformance	YES
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal and Coax or Power (Not Included)
Mixed Contacts	YES
Option	GENERAL PURPOSE
Current Rating (Amps)	5A
Total Number of Contacts	21
Orientation	Straight
Depth	14.5mm
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Empty Shell	NO
Wire Gauge	20 AWG
Flange Feature	Housing/Shell (Unthreaded)
Connector Style	D-Sub, Combo
Shell Size, Connector Layout	4 DC C - 21WA4
Length	69.3mm
Width	12.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

09694017214 Product Details

09694017214 Overview

You get it in Receptacle, Female Sockets packaging.Free Hanging (In-Line) is the mounting type.An Bulk case is utilized for packaging the product.Free Hanging, Panel is the mounting point for the part.There is no operating temperature for the device.
