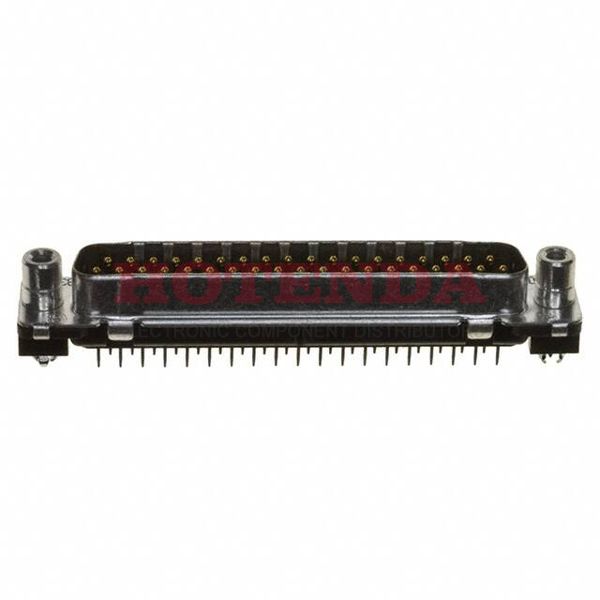

Name: 3-338312-2
Brand: TE Connectivity AMP Connectors
SKU: 3-338312-2
Price: 5.39000 USD
Availability: InStock

new-10%

3-338312-2

Manufacturer part number:3-338312-2

Manufacturer:TE Connectivity AMP Connectors

Description:3-338312-2 datasheet pdf and D-Sub Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:3-338312-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Material	Glass, Polyester
Dielectric Material	Polyester, Glass Filled
Housing Material	Polyester
Body Material	Steel
Shell Material, Finish	Steel, Tin Plated
Operating Temperature	-55°C~105°C
Packaging	Tray
Published	2007
Series	AMPLIMITE HDP-20
Feature	Board Lock, Grounding Indents
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Plug, Male Pins
Number of Positions	37
Color	Black
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.30
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Signal
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	2.76mm
Total Number of Contacts	37
Orientation	Vertical
Depth	12.6mm
Current Rating	6A
Shell Finish	TIN
Contact Finish	Gold
UL Flammability Code	94V-0
Lead Length	3.2mm
Empty Shell	NO
Working Voltage	250V
Flange Feature	Mating Side, Female Screwlock (4-40)
ELV	Compliant
Connector Style	D-Sub
Number of Ports	1
Body Plating	Tin
Shell Size, Connector Layout	4 DC C
Length	69.4mm
Width	11.7mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

3-338312-2 Product Details

3-338312-2 Overview

You'll get Plug, Male Pins packages.This device has a mounting type of Through Hole.An Tray case is utilized for packaging the product.This product is from the AMPLIMITE HDP-20 Series.It features 1 ports for managing a variety of tasks.A number of advantages are provided by its Board Lock, Grounding Indents feature.Through Hole represents the mounting point for the part.Device runs at -55°C~105°C Operating Temperature.
