Name: DMN2005LP4K-7
Brand: Diodes Incorporated
SKU: DMN2005LP4K-7
Price: 0.51000 USD
Availability: InStock

new-10%

DMN2005LP4K-7

Manufacturer part number:DMN2005LP4K-7

Manufacturer:Diodes Incorporated

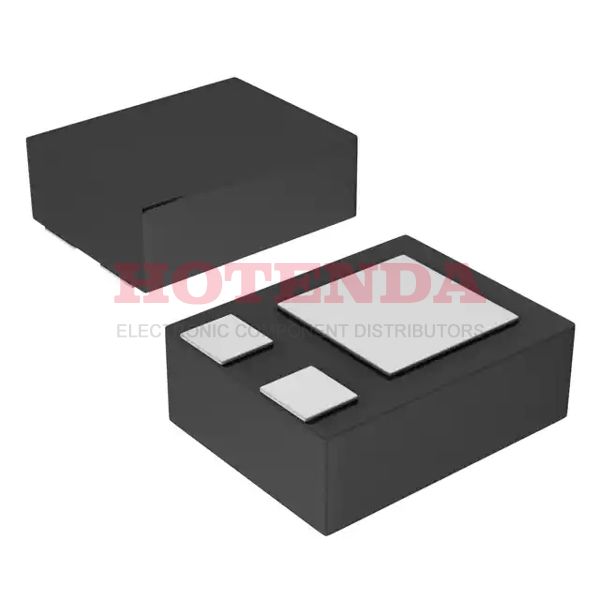

Description:Single N-Channel 20 V 1.5 Ohm Enhancement Mode Transistor-DFN-3

Case Package:SOT-23

Datasheet:DMN2005LP4K-7 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	3-XFDFN
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-65°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2012
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Resistance	1.5Ohm
Additional Feature	HIGH RELIABILITY
Subcategory	FET General Purpose Powers
Technology	MOSFET (Metal Oxide)
Terminal Position	BOTTOM
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	40
Pin Count	3
Number of Elements	1
Number of Channels	1
Power Dissipation-Max	400mW Ta
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	200mW
Case Connection	DRAIN
Turn On Delay Time	4.06 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	1.5 Ω @ 10mA, 4V
Vgs(th) (Max) @ Id	900mV @ 100μA
Input Capacitance (Ciss) (Max) @ Vds	41pF @ 3V
Current - Continuous Drain (Id) @ 25°C	200mA Ta
Drive Voltage (Max Rds On,Min Rds On)	1.5V 4V
Vgs (Max)	±10V
Turn-Off Delay Time	13.7 ns
Continuous Drain Current (ID)	200mA
Gate to Source Voltage (Vgs)	10V
Drain Current-Max (Abs) (ID)	0.2A
Drain to Source Breakdown Voltage	20V
Height	350μm
Length	1mm
Width	600μm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
