AP7217A-33SPG-13 Overview

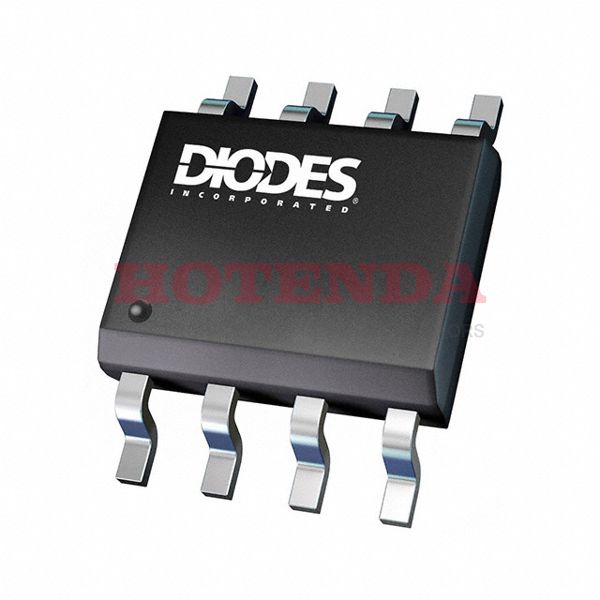

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 8-SOIC (0.154, 3.90mm Width) Exposed Pad case contains the Liner IC. In total, there are 8 terminations on the gadget. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~85°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. There are 8 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 8-pin is present on the chip. It is AP7217A for this voltage regulator IC, just for your information. A packing method for the IC regulator is TAPE AND REEL, which means it is packed in a certain way. A maximum output current of 600mA is required to meet the operation requirements. It operates in the 80μA Quiescent Current state.
AP7217A-33SPG-13 Features
800mV dropout voltage
TAPE AND REEL method of packing
AP7217A-33SPG-13 Applications
There are a lot of Diodes Incorporated
AP7217A-33SPG-13 Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
