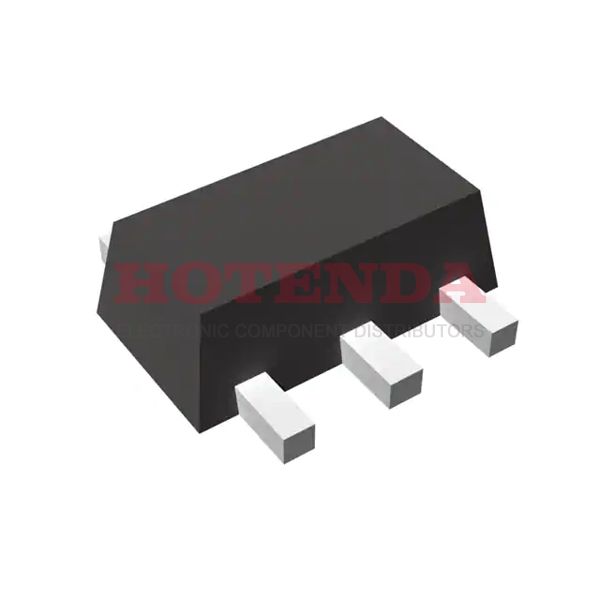

Name: RP170H321B-T1-FE
Brand: RICOH Electronic Devices Co., LTD.
SKU: RP170H321B-T1-FE
Price: 0.25000 USD
Availability: InStock

new-10%

RP170H321B-T1-FE

Manufacturer part number:RP170H321B-T1-FE

Manufacturer:RICOH Electronic Devices Co., LTD.

Description:1.5mm PMIC 5

Case Package:SOT-23

Datasheet:RP170H321B-T1-FE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Surface Mount	YES
Packaging	Tape & Reel (TR)
JESD-609 Code	e3/e6
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	TIN/TIN BISMUTH
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	1.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	5
JESD-30 Code	R-PDSO-F5
Qualification Status	Not Qualified
Output Voltage 1	3.2V
Input Voltage (Min)	2.6V
Input Voltage (Max)	10V
Output Voltage1-Max	3.232V
Output Voltage1-Min	3.168V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.3A
Length	4.5mm
Height Seated (Max)	1.6mm
Width	2.5mm
RoHS Status	RoHS Compliant

RP170H321B-T1-FE Product Details

RP170H321B-T1-FE Overview

A Tape & Reel (TR) case is used to deliver this IC regulator. On the regulater IC chip, there are a total of 5 terminations. A total of 5 pins can be found on the board. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator.
