74LVC2G00GXX Overview

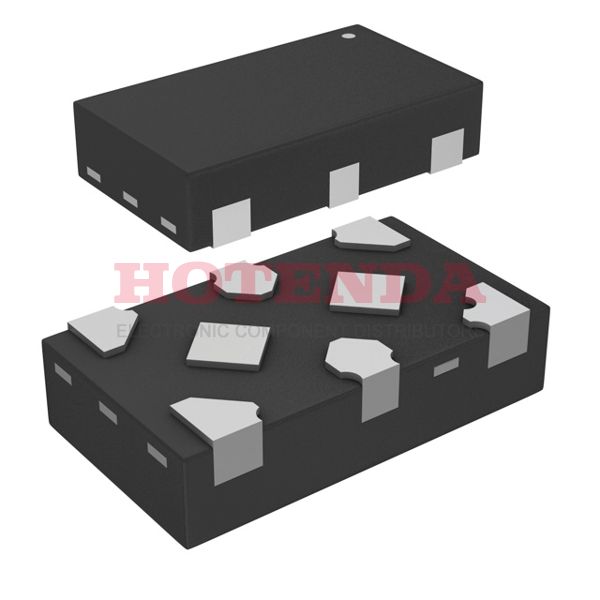

Packed in 8-XFDFN Exposed Pad, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the NAND Gate logic principle. To ensure the part's full function, a voltage of 3.3V~5V is needed. Extended operating temperature around -40°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is 32mA 32mA. It comes from the 74LVC series. There are 8 terminations totally. The part has 2 functions that significantly boost the user experience. It represents the LVC/LCX/Z product family. The part supports 2 inputs. This device is composed of 2 circuits. It requires a minimal voltage of 1.65V to supply the device. The supply voltage should not exceed 5.5V. The maximum current in standby mode is 4μA.
74LVC2G00GXX Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
74LVC2G00GXX Applications
There are a lot of Nexperia USA Inc.
74LVC2G00GXX Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
