74LVC1G14Z-7 Overview

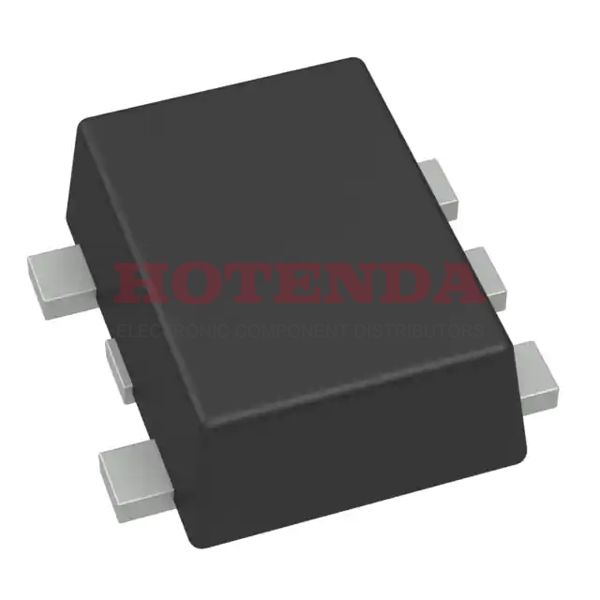

The part is convenient to ship overseas because it is packed in a SOT-553. The advanced packaging method Tape & Reel (TR) provides high reliability. A Inverter logic principle governs its operation. Voltage 1.65V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~125°C. Mounted in Surface Mount. Output current is 32mA 32mA in the high and low states. 74LVC is the series it belongs to. The total number of terminations is 6. There are 1 functions that significantly improve the user experience. As part of LVC/LCX/Z, this chip is used. Try searching with 74LVC1G14 to find device variants. Inputs are limited to 1. The device consists of 1 circuits. Vsup reaches its maximum value at 5.5V. In standby mode, there is 200μA maximum current. There are Schmitt Trigger features in it.
74LVC1G14Z-7 Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
74LVC1G14Z-7 Applications
There are a lot of Diodes Incorporated
74LVC1G14Z-7 Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
